Product Model
nedu-l2r1-v8-m12g5-m12g5
Selling Points

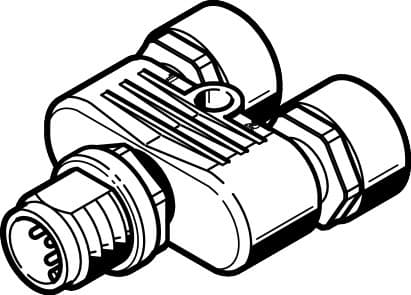

- 1The Festo NEDU-L2R1-V8-M12G5-M12G5 push-in T-connector offers a secure and efficient electrical connection, ensuring stable performance in various industrial applications.
- 2Weighing only 28 grams, this connector is lightweight and compact, making it ideal for space-constrained environments without compromising on functionality.
- 3Compatible with operating voltages ranging from 0 to 30 volts DC, this connector supports a broad range of applications, from low to medium voltage systems.
- 4With a surge resistance of 1.5 kV, the NEDU-L2R1-V8-M12G5-M12G5 ensures protection against electrical surges, extending the lifespan of your equipment.
- 5Featuring IP65 and IP67 protection, this connector is designed to withstand harsh environments, including dust and water, ensuring reliable operation in various conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-101 | Type of mounting | Screw-in |
Product weight | 28g | Electrical connection 1 | Straight socket, M12x1, 5-pin, A-coded |
Electrical connection 2 | Straight plug, M12x1, 2-pin, A-coded | Electrical connection 3 | Straight plug, M12, 3-pin, A-coded |
DC operating voltage range | 0V 30V | Current rating at 40° C | 4A |
Surge resistance | 1.5kV | Degree of protection | IP65 IP67 |
Ambient temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Housing material | TPE-U(PUR) |
Housing colour | Black | Material of union nut | Die-cast zinc Nickel-plated |
Seals material | FPM | Material of pin contacts | Copper alloy Gold-plated |
Manufacturer ID | 2839846 |
Specifications may be subject to change without notice
