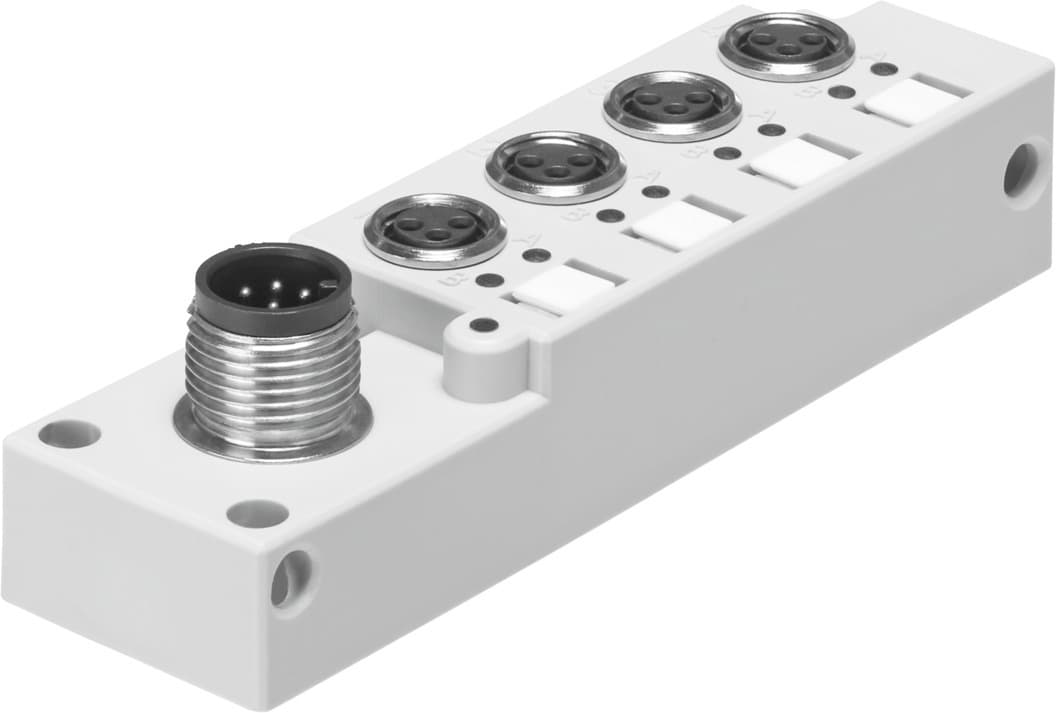

Product Model
nedu-l4r1-m8g3l-m12g8
Selling Points
- 1High-Quality Connectivity Solution: Reliable electrical connections with M8 and M12 connectors.
- 2IP68 Protection: Durable and resistant to dust and water.
- 3Wide Voltage Range: Operates between 10V and 30V DC.
- 4Corrosion-Resistant Materials: PBT-reinforced housing and high corrosion stress resistance.
- 5Versatile Mounting Options: Suitable for any mounting position.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 24 mm | Height | 23 mm |
Length | 87 mm | Ready status indication | LED green |
Status indicator | LED yellow | Mounting position | Any |
Product weight | 58g | Electrical connection 1 | Straight socket, M8, 3-pin |
Electrical connection 2 | Straight plug, M12x1, 8-pin | DC operating voltage range | 10V 30V |
Current rating at 40° C | 3A | Acceptable current load per slot | 2A |
Degree of protection | IP68 | Ambient temperature | -20°C 80°C |
LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
Corrosion resistance class (CRC) | 3 - High corrosion stress | Housing material | PBT-reinforced |
Housing colour | Gray | Seals material | FPM |
Material of pin contacts | Nickel-plated and gold-plated | Socket material | Brass, nickel-plated |
Manufacturer ID | 574586 |
Specifications may be subject to change without notice
