Product Model

nedv-l2r1-v7-m12w3-k-0.1l1-n-m8w4-0.2r1

In Stock
Last updated: 2025/4/25

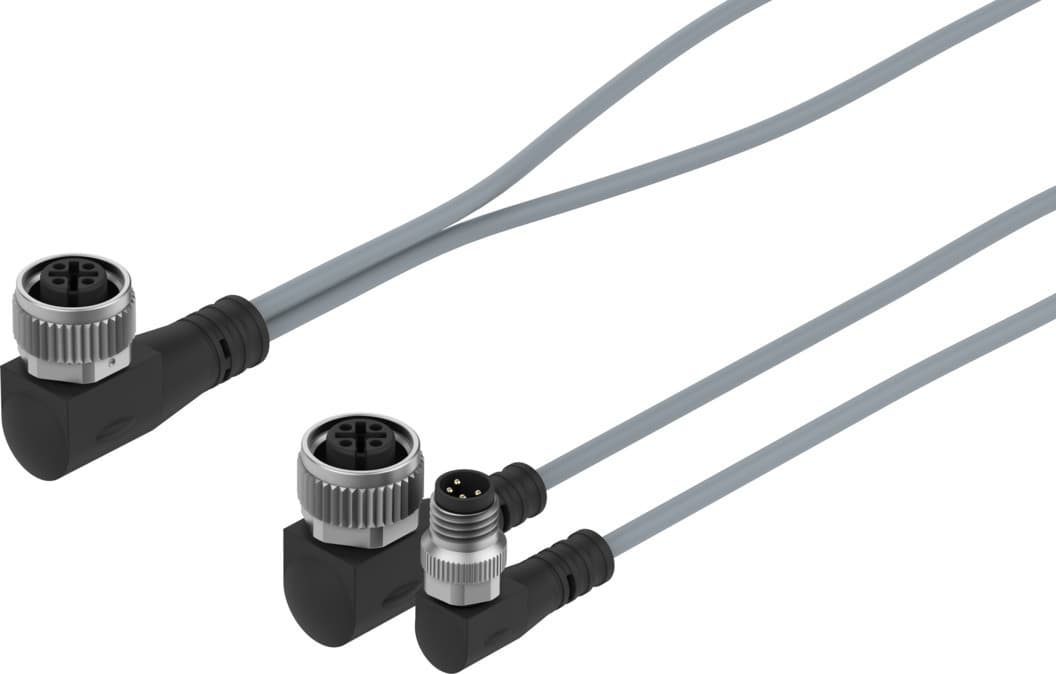

Festo nedv-l2r1-v7-m12w3-k-0.1l1-n-m8w4-0.2r1

Selling Points

  • 1The Festo Nedv-L2R1-V7-M12W3-K-0.1L1-N-M8W4-0.2R1 offers advanced automation solutions with precise parameterization, ensuring optimal performance in various industrial applications.
  • 2This product is designed for easy integration with Festo's automation systems, providing a seamless connection for efficient control and monitoring.
  • 3The detailed descriptions and parameters of the Nedv-L2R1-V7-M12W3-K-0.1L1-N-M8W4-0.2R1 are available on the official Festo website, ensuring you have all the information needed for successful implementation.
  • 4With its robust design and high-quality components, the Nedv-L2R1-V7-M12W3-K-0.1L1-N-M8W4-0.2R1 is ideal for demanding industrial environments, providing reliability and durability.
  • 5By utilizing the Nedv-L2R1-V7-M12W3-K-0.1L1-N-M8W4-0.2R1, you can enhance your factory automation setup with advanced features and precise control, leading to increased efficiency and productivity.
  • 6Visit the Festo Support Portal: Go to the Festo support portal and search for the specific product model.
  • 7Check Technical Documentation: Look for technical data sheets or application notes that detail the parameters and descriptions of the product.
  • 8IODD Files: Check if there are IODD (Device Description) files available for the product, which typically contain detailed parameter descriptions.
  • 9Parameterization Guides: Refer to parameterization guides or manuals that explain how to set up and configure the product.
Product Details
nedv-l2r1-v7-m12w3-k-0.1l1-n-m8w4-0.2r1
Festo

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Based on norm
EN 61076-2-101 EN 61076-2-104 EN 61984
Mounting position
Any
Product weight
28g
Electrical connection 1
2x angled socket, M12, 3-pin
Electrical connection 2
Angled plug, M8, 4-pin
DC operating voltage range
0V 30V
Current rating at 40° C
2A
Cable length
0.2m
Cable diameter
2.9mm
Cable design
2 x 0.14 mm2
Degree of protection
IP65
Ambient temperature
-25°C 80°C
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Note on materials
RoHS-compliant
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Material of cable sheath
TPE-U(PUR)
Manufacturer ID
2384165

Specifications may be subject to change without notice
