Product Model

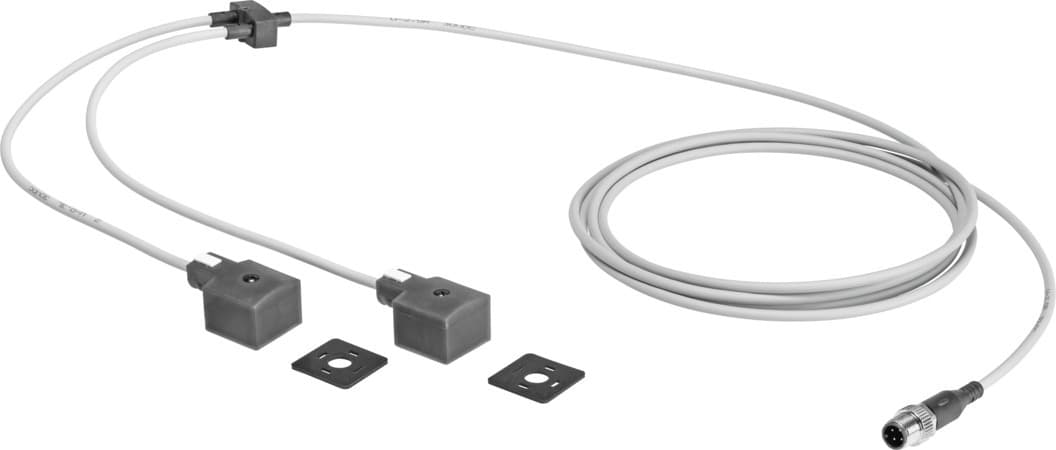

nedy-l2r1-v1-a1w4l-u-0.3l-m8g4-5r
Selling Points
- 1High-Quality Signal Distribution: Reliable signal distribution with LED status display.
- 2Robust Connectors: M8x1 A-coded connectors ensure secure connections.
- 3Flexible Cable Durability: Suitable for energy chains and robot applications with high torsional resistance.
- 4Wide Operating Range: Operates within 20.4V to 27.6V DC voltage range.
- 5Durable Construction: IP65 and IP67 protection, suitable for various ambient temperatures (-20°C to 80°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 175301-803 EN 61076-2-104 | Structural design | Y-distributor with cables at both ends |
Distributor type | 2 to 1 | Signal status display | LED yellow |
Cable designation | With label holder | Type of mounting | With through-hole for M2 screw With accessories |
Product weight | 166g | Electrical connection 1, function | Control side |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 3 |
Electrical connection for input 1, connection pattern | 00995633 | Electrical connection 2, function | Field device end |
Electrical connection 2, design | Rectangular | Electrical connection 2, connection type | 2x socket |
Electrical connection 2, cable outlet | Angled | Electrical connection 2, connection technology | Connection diagram form A as per EN 175301-803 |
Electrical connection 2, number of pins/wires | 4 | Electrical connection 2, occupied pins/wires | 2 |
Electrical connection 2, connection pattern | 00995629 | DC operating voltage range | 20.4V 27.6V |
Current rating at 40° C | 3A | Surge resistance | 0.8kV |
Cable length 1 | 5m | Cable length 2 | 0.3m |
Cable characteristic | Suitable for energy chains/robot applications | Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm |
Bending radius 1, flexible cable installation | 39mm | Bending radius 2, flexible cable installation | 39mm |
Cable diameter 1 | 3.8mm | Cable diameter 2 | 3.8mm |
Nominal conductor cross section | 0.25mm2 | Degree of protection | IP65 IP67 |
Ambient temperature | -20°C 80°C | Note on ambient temperature | -10 - 40 °C when mounted via through-hole |
Ambient temperature with flexible cable installation | -20°C 80°C | Storage temperature | -20°C 80°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester |
Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | PA PC TPE-U(PUR) | Housing colour | Black |
Seals material | NBR | Material of pin contacts | Copper alloy, gold-plated Copper alloy, silver-plated |
Threaded sleeve material | Brass, nickel-plated | Manufacturer ID | 8035794 |
Specifications may be subject to change without notice
