Product Model

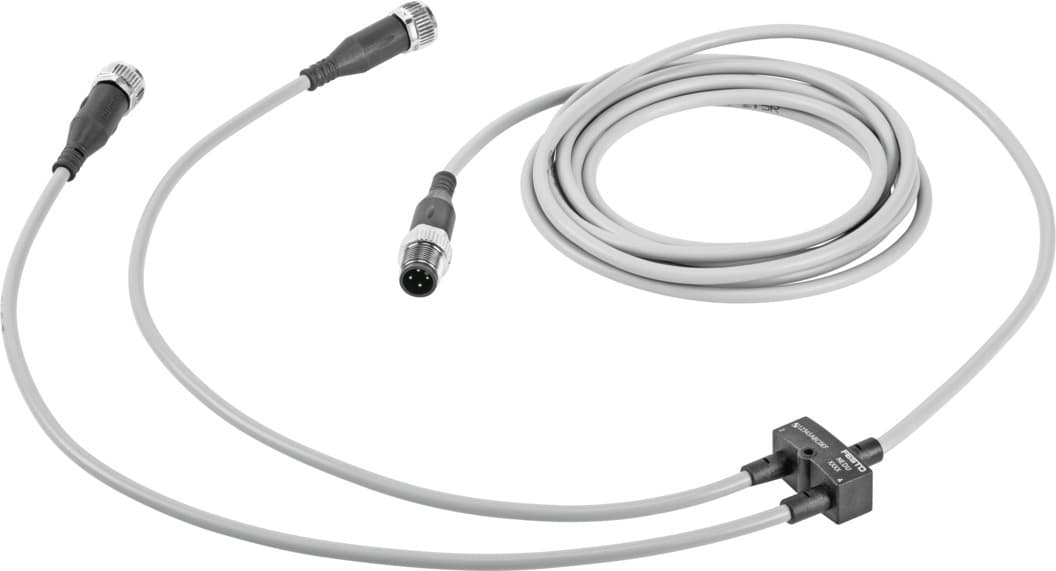

nedy-l2r1-v1-m12g5-u-0.3l-m8g4-2.5r
Selling Points
- 1Compliant with EN 61076-2-101 and EN 61076-2-104 standards
- 2Y-type distributor with cables on both sides design
- 3IP65, IP68, and IP69K degrees of protection
- 4Operational voltage range: 0V to 30V DC and AC
- 5Free shipping on orders over $1,000 and lifetime tech support
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-101 EN 61076-2-104 | Explosion prevention and protection | Observe the information on the certificate Zone 2 (ATEX) Zone 22 (ATEX) |
Structural design | Y-distributor with cables at both ends | Distributor type | 2 to 1 |
Cable designation | With label holder | Type of mounting | With through-hole for M2 screw With accessories |
Product weight | 113g | Electrical connection 1, function | Control side |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
Electrical connection for input 1, connection pattern | 00991171 | Electrical connection 2, function | Field device end |
Electrical connection 2, design | Round | Electrical connection 2, connection type | 2x socket |
Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 2, number of pins/wires | 5 | Electrical connection 2, occupied pins/wires | 4 |
Electrical connection 2, connection pattern | 00991861 | DC operating voltage range | 0V 30V |
Operating voltage range AC | 0V 30V | Current rating at 40° C | 3A |
Surge resistance | 0.8kV | Cable length 1 | 2.5m |
Cable length 2 | 0.3m | Cable characteristic | Suitable for energy chains/robot applications |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm | Bending radius 1, flexible cable installation | 46mm |
Bending radius 2, flexible cable installation | 46mm | Cable diameter 1 | 4.5mm |
Cable diameter 2 | 4.5mm | Nominal conductor cross section | 0.25mm2 |
Degree of protection | IP65 IP68 IP69K | Ambient temperature | -25°C 80°C |
Note on ambient temperature | -10 - 40 °C when mounted via through-hole | Ambient temperature with flexible cable installation | -20°C 80°C |
Storage temperature | -25°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester | Contamination level | 3 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Housing material | PA TPE-U(PUR) |
Housing colour | Black | Material of union nut | Brass, nickel-plated |
Seals material | NBR | Material of pin contacts | Copper alloy, gold-plated |
Threaded sleeve material | Brass, nickel-plated | Manufacturer ID | 8035777 |
Specifications may be subject to change without notice
