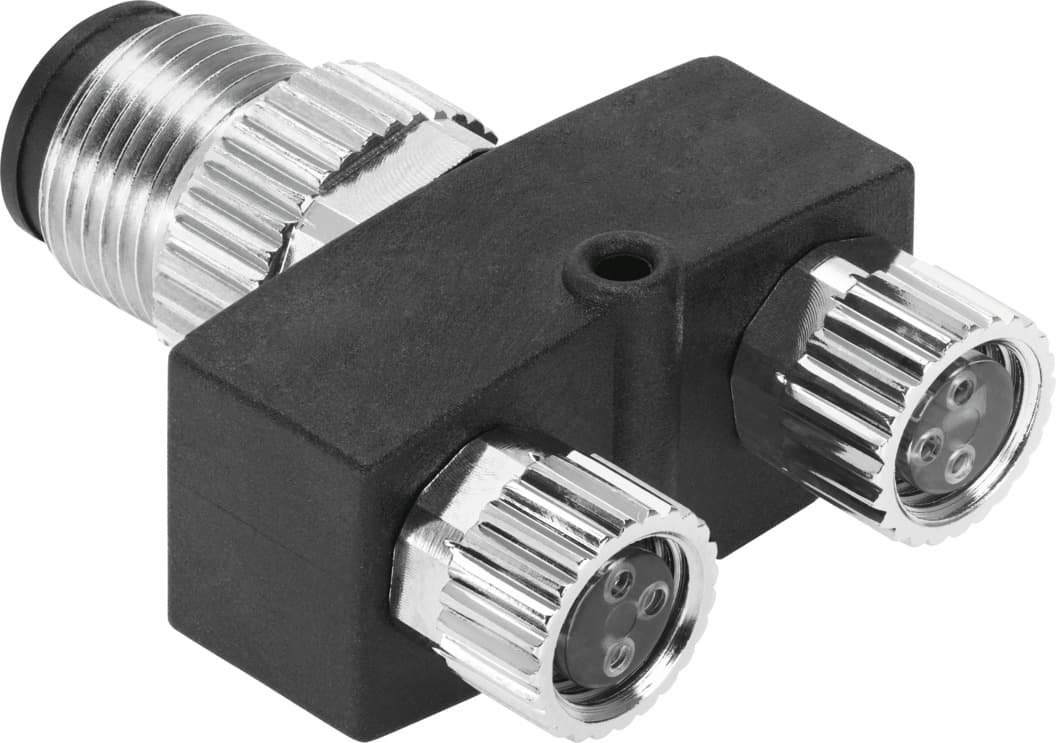

Product Model
nedy-l2r1-v1-m8g3-n-m12g4
Selling Points
- 1Robust Design: Y-distributor with cable on controller side for reliable electrical connections.
- 2ATEX Compliance: Zone 2 and Zone 22 ATEX compliant for safe use in hazardous environments.
- 3High Surge Resistance: 0.8 kV surge resistance ensures durability against electrical surges.
- 4Wide Operating Temperature: -25°C to 85°C ambient temperature range, suitable for various applications.
- 5Durable Materials: Made from RoHS-compliant materials, including TPE-U(PUR) cable sheath and nickel-plated brass union nut.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-101 EN 61076-2-104 | Explosion prevention and protection | Observe the information on the certificate Zone 2 (ATEX) Zone 22 (ATEX) |
Structural design | Y-distributor without cable | Distributor type | 2 to 1 |
Cable designation | Without label holder | Type of mounting | With through-hole for M2 screw With accessories |
Product weight | 20g | Electrical connection 1, function | Control side |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
Electrical connection for input 1, connection pattern | 00995386 | Electrical connection 2, function | Field device end |
Electrical connection 2, design | Round | Electrical connection 2, connection type | 2x socket |
Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 2, number of pins/wires | 3 | Electrical connection 2, occupied pins/wires | 3 |
Electrical connection 2, connection pattern | 00991871 | DC operating voltage range | 0V 30V |
Operating voltage range AC | 0V 30V | Current rating at 40° C | 3A |
Surge resistance | 0.8kV | Degree of protection | IP65 IP68 IP69K |
Ambient temperature | -25°C 85°C | Note on ambient temperature | -10 - 40 °C when mounted via through-hole |
Storage temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester | Contamination level | 3 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Housing material | PC TPE-U(PUR) |
Housing colour | Black | Material of union nut | Brass, nickel-plated |
Seals material | NBR | Material of pin contacts | Copper alloy, gold-plated |
Threaded sleeve material | Brass, nickel-plated | Manufacturer ID | 8005311 |
Specifications may be subject to change without notice
