Product Model
nedy-l2r1-v1-z4w2z-u-0.3l-m12g4-5r
Selling Points
- 1High-Quality Signal Distribution: Reliable Y-type distributor with cables on both sides for efficient signal transmission.
- 2LED Signal Status Display: Clear yellow LED display for easy monitoring of signal status.
- 3Holding Current Reduction: Additional function to reduce holding current, enhancing system efficiency.
- 4Robust Cable Design: Durable cables with high bending strength and torsional resistance for demanding applications.
- 5Compliant with EU Standards: Meets EU EMC and RoHS directives, ensuring compliance and safety in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-101 | Certification | RCM compliance mark |

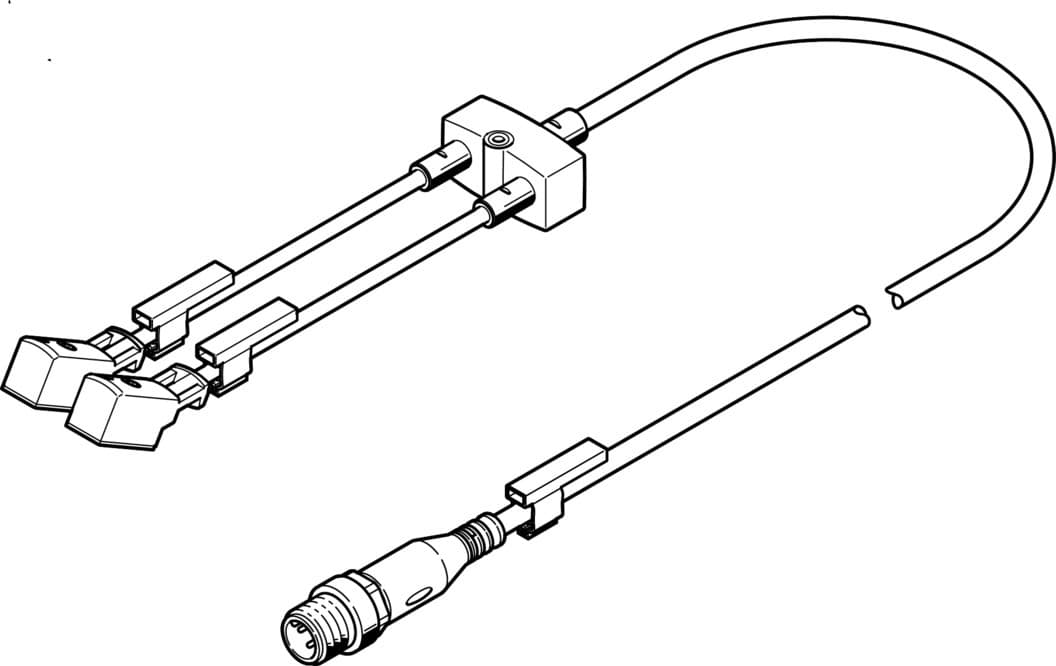

Structural design | Y-distributor with cables at both ends | Distributor type | 2 to 1 |
Signal status display | LED yellow | Additional functions | Holding current reduction |
Cable designation | With label holder | Type of mounting | With through-hole for M2 screw With accessories |
Product weight | 139g | Electrical connection 1, function | Control side |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 3 |
Electrical connection for input 1, connection pattern | 00995635 | Electrical connection 2, function | Field device end |
Electrical connection 2, design | Rectangular | Electrical connection 2, connection type | 2x socket |
Electrical connection 2, cable outlet | Angled | Electrical connection 2, connection technology | Connection diagram ZC, metric screw |
Electrical connection 2, number of pins/wires | 2 | Electrical connection 2, occupied pins/wires | 2 |
Electrical connection 2, connection pattern | 00995625 | DC operating voltage range | 20.4V 27.6V |
Current rating at 40° C | 1A | Surge resistance | 0.8kV |
Cable length 1 | 5m | Cable length 2 | 0.3m |
Cable characteristic | Suitable for energy chains/robot applications | Information on cable characteristics | Standard for field device side |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm | Note on connector cable test conditions | For standard cable characteristics: energy chain: 1.5 million cycles, bending radius 75 mm, flexural strength: as per Festo standard, test conditions on request |
Bending radius 1, flexible cable installation | 39mm | Bending radius 2, flexible cable installation | 30mm |
Cable diameter 1 | 3.8mm | Cable diameter 2 | 2.9mm |
Nominal conductor cross section | 0.25mm2 | Degree of protection | IP65 |
Ambient temperature | -10°C 50°C | Note on ambient temperature | -10 - 40 °C when mounted via through-hole |
Ambient temperature with flexible cable installation | -5°C 50°C | Storage temperature | -10°C 50°C |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | PA TPE-U(PUR) | Housing colour | Black |
Seals material | NBR TPE-O | Material of pin contacts | Copper alloy, gold-plated Copper alloy, tin-plated |
Threaded sleeve material | Brass, nickel-plated | Manufacturer ID | 8035788 |
Specifications may be subject to change without notice
