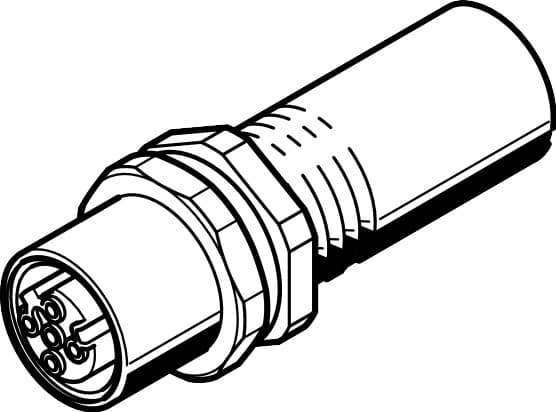

Product Model
nefu-d12g4-d12dg4
Selling Points
- 1Robust Design: Built with brass, nickel-plated housing for durability and corrosion resistance.
- 2Precise Electrical Connections: Equipped with straight sockets, M12x1, 4-pin, D-coded for reliable connectivity.
- 3Compliance with Standards: Conforms to EN 61076-2-101 and ISO/IEC 11801, class D, ensuring high transmission quality.
- 4Operational Flexibility: Operates within a DC voltage range of 0 V to 30 V, suitable for various applications.
- 5Environmental Durability: Offers IP65 and IP67 protection against dust and water, with an operating temperature range of -25 °C to 85 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 61076-2-101 | Type of mounting | Screwed tightly |
Electrical connection 1 | Straight socket, M12x1, 4-pin, D-coded | Electrical connection 2 | Straight socket, M12x1, 4-pin, D-coded |
DC operating voltage range | 0V 30V | Current rating at 40° C | 4A |
Surge resistance | 0.8kV | Transmission characteristics | In accordance with category 5, EN 50173, class D According to category 5, ISO/IEC 11801, class D |
Degree of protection | IP65 IP67 | Ambient temperature | -25°C 85°C |
LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Housing material | Brass, nickel-plated | Housing colour | Silver |
Material of pin contacts | Brass Gold-plated | Manufacturer ID | 8040459 |
Specifications may be subject to change without notice
