Product Model

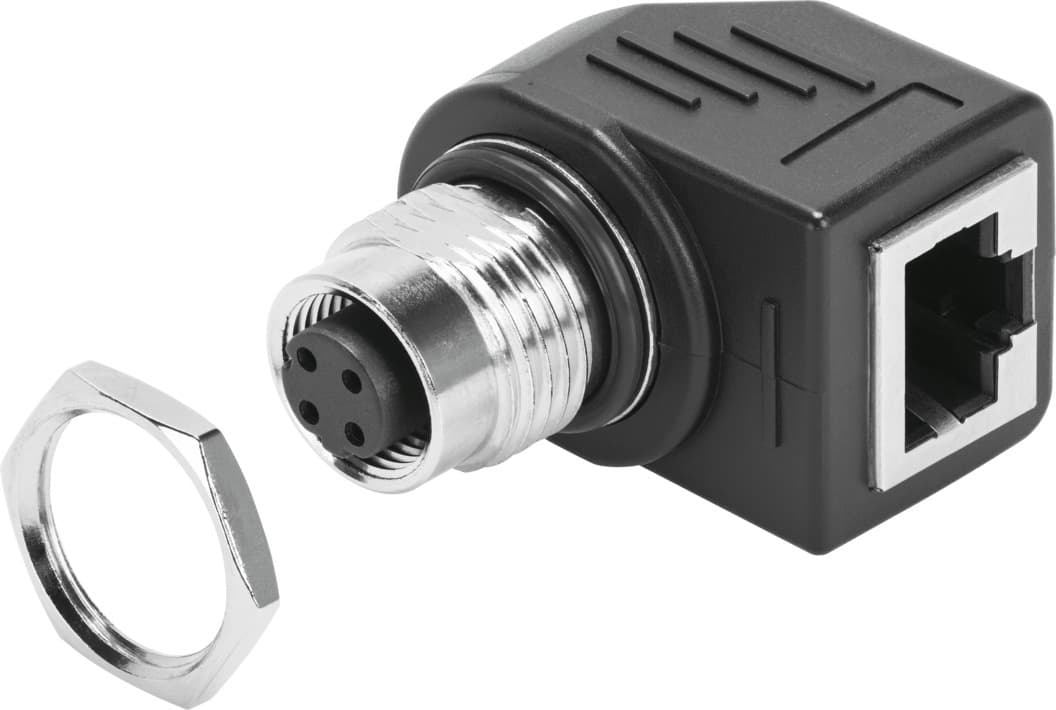

nefu-d12g4-r3dw4
Selling Points
- 1Robust Design: Built with brass, nickel-plated brass, and die-cast zinc for durability and corrosion resistance.
- 2Precise Transmission: Meets category 5 standards (EN 50173, ISO/IEC 11801) for reliable data transmission.
- 3Compliance with Standards: Conforms to EN 61076-2-101 and IEC 60603-7-3 for electrical connections.
- 4Versatile Mounting: Screw-clamped mounting for easy installation and secure connection.
- 5Wide Operating Range: Operates within a DC voltage range of 0 V to 30 V, suitable for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Length | 40.1 mm | Conforms to standard | EN 61076-2-101 IEC 60603-7-3 |
Type of mounting | Screwed tightly | Electrical connection 1 | Straight socket, M12x1, 4-pin, D-coded |
Electrical connection 2 | Angled socket, RJ45, 4-pin | DC operating voltage range | 0V 30V |
Current rating at 40° C | 2A | Surge resistance | 0.8kV |
Transmission characteristics | In accordance with category 5, EN 50173, class D According to category 5, ISO/IEC 11801, class D | Degree of protection | IP20 IP65 IP67 |
Ambient temperature | -5°C 60°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | Brass, nickel-plated PA Die-cast zinc |
Housing colour | Black | Material of pin contacts | Brass Gold-plated |
Manufacturer ID | 8040457 |
Specifications may be subject to change without notice
