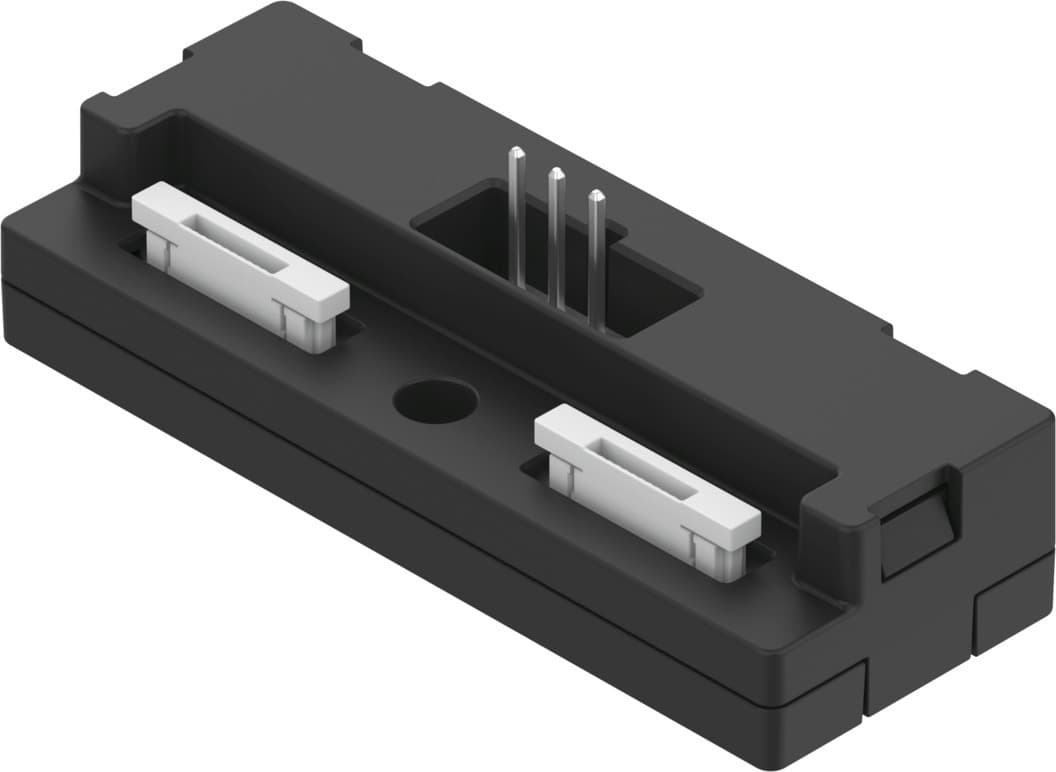

Product Model
nefv-v14-xx4g3-t1g3
Selling Points
- 118.7 mm x 50 mm x 15.3 mm for precise installation.
- 2Secure through-hole for M3 screw ensures stable connection.
- 3Simplifies cable management with a straight outlet.
- 4Weighs only 6.8 grams for easy handling.
- 5RoHS-compliant and made from corrosion-resistant PA housing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimensions W x L x H | 18.7 mm x 50 mm x 15.3 mm | Type of mounting | With through-hole for M3 screw |
Cable outlet | Straight | Product weight | 6.8g |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | ZIF |
Electrical connection 1, number of pins/wires | 12 | Electrical connection 1, occupied pins/wires | 3 |
Electrical connection 1, type of mounting | Inserted | Electrical connection 2, function | Field device end |
Electrical connection 2, design | Rectangular | Electrical connection 2, connection type | Socket |
Electrical connection 2, connection technology | ZIF | Electrical connection 2, number of pins/wires | 12 |
Electrical connection 2, occupied pins/wires | 3 | Electrical connection 2, type of mounting | Inserted |
Electrical connection 3, function | Control side | Electrical connection 3, design | Rectangular |
Electrical connection 3, connection type | Plug | Electrical connection 3, connection technology | Festo-specific coding |
Electrical connection 3, number of pins/wires | 3 | Electrical connection 3, occupied pins/wires | 3 |
Electrical connection 3, type of mounting | Inserted | Electrical connection for input 3, connection pattern | 00997358 |
DC operating voltage range | 0V 310V | Protective earth connection | Not available |
Shield | no | Degree of protection | IP40 |
Note on degree of protection | In mounted state | Ambient temperature | -10°C 60°C |
Storage temperature | -40°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 2 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | PA |
Housing colour | Black | Material of pin contacts | Bronze, nickel-plated and gold-plated |
Manufacturer ID | 8109878 |
Specifications may be subject to change without notice
