Product Model
nev-01-vdma
Selling Points

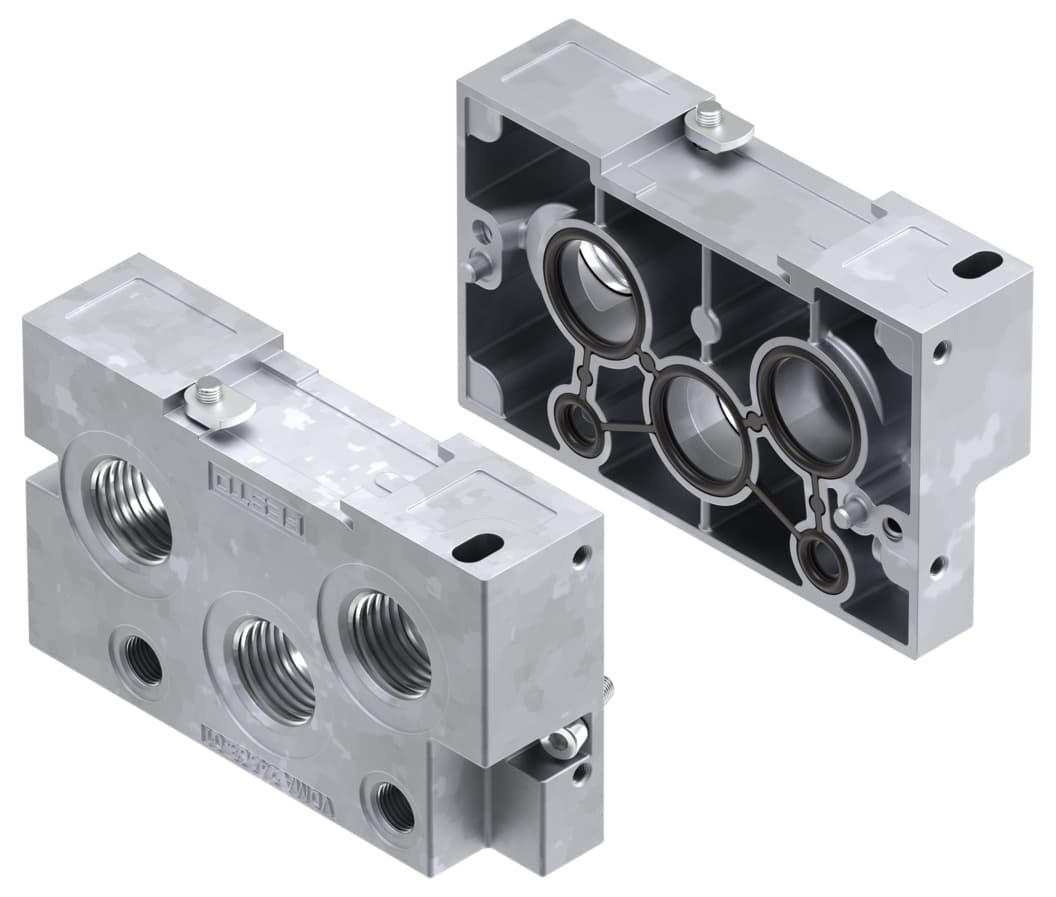

- 1High-Quality Construction: The NEV-01-VDMA end plate kit is crafted from durable die-cast aluminum, ensuring long-lasting performance in industrial environments.
- 2Compressed Air Compatibility: Designed to operate with compressed air in accordance with ISO 8573-1:2010 [7:4:4], making it suitable for a wide range of pneumatic systems.
- 3Precise Pneumatic Connections: Equipped with 3 x G1/2" threaded pneumatic connections (ports 1, 3, 5) and 2 x G1/8" threaded pneumatic connections (ports 12, 14) for precise control.
- 4Versatile Application: Ideal for manifold assembly of standard manifold sub-bases, offering flexibility in various industrial settings.
- 5Lubricated Operation Possible: Allows for lubricated operation, which is required for further operation, enhancing the overall efficiency and longevity of the system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 445g |
Pilot air port 12/14 | G1/8 | Pneumatic connection 1 | G1/2 |
Pneumatic connection 3 | G1/2 | Pneumatic connection 5 | G1/2 |
Housing material | Die-cast aluminum | Manufacturer ID | 161104 |
Specifications may be subject to change without notice
