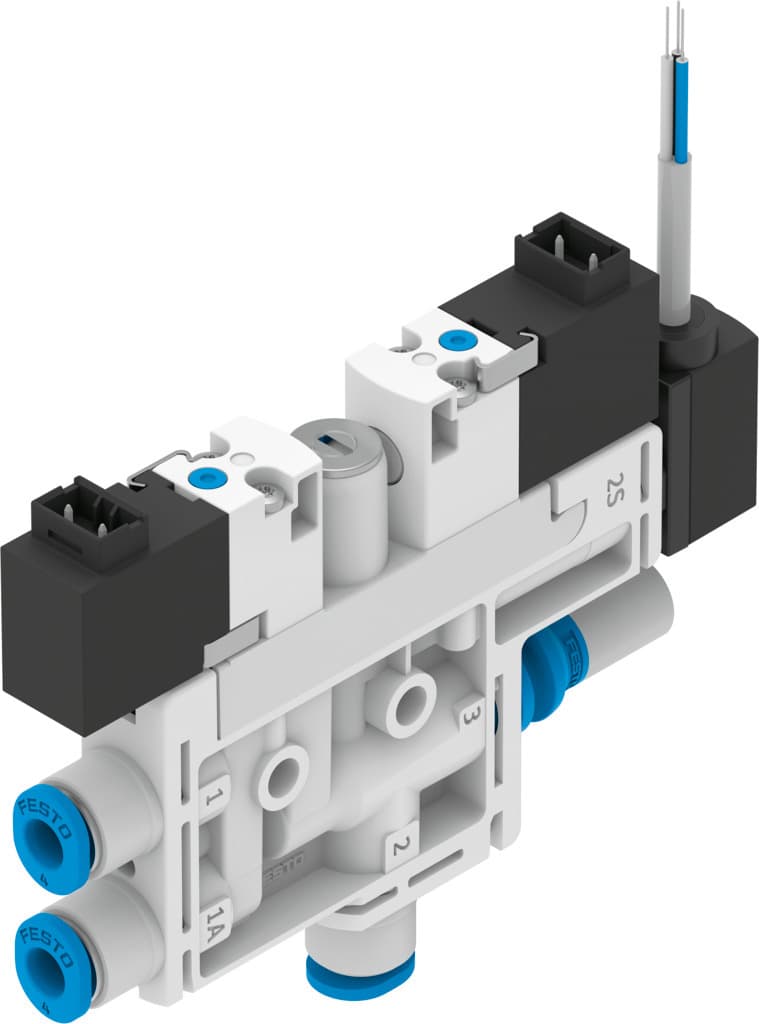

Product Model
ovel
Selling Points
- 1Lightweight and Compact Design - Ideal for space-constrained applications.
- 2Integrated Solenoid Valves - Enables vacuum on/off control and ejector pulse functionality.
- 3Optional Silencers - Reduces noise level for a quieter operation.
- 4Mechanical Manual Override - Provides backup control in case of electrical failure.
- 5Configurable Module - Includes common supply manifold OABM-P and connection accessories for easy setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm 0.95mm | Mounting position | Any |
Ejector characteristics | High suction rate High vacuum Standard | Grade of filtration | 40μm |
Manual override | Non-detenting | Integrated function | Electric ejector pulse Flow control Pressure sensor Pressure transmitter Shut off valve, electric Compressed air filter Pneumatic muffler open |
Structural design | T-shape | Switching element function | N/C contact/N/O contact switchable |
Valve function | Closed | Nominal operating pressure | 58psi |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Switching output | PNP/NPN switchable | Coil characteristics | 24 V DC: 1.28 W 24 V DC: 1.0 W |
Certification | c UL us - Listed (OL) | CE marking (see declaration of conformity) | As per EU EMC directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 50°C |
Degree of protection | IP40 | Ambient temperature | 0°C 50°C |
Product weight | 39g 100g | Pressure measuring range | -14.5psi 14.5psi |
Pneumatic connection 1 | Common port for pneumatic tubing outside diameter 3 mm for pneumatic tubing outside diameter 4 mm For pneumatic tubing outside diameter 6 mm | Material of connecting thread | POM |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | POM | Compressed air filter material | POM |
Housing material | PA-reinforced | Material of screws | Steel |
Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 8049045 |
Specifications may be subject to change without notice
