Product Model

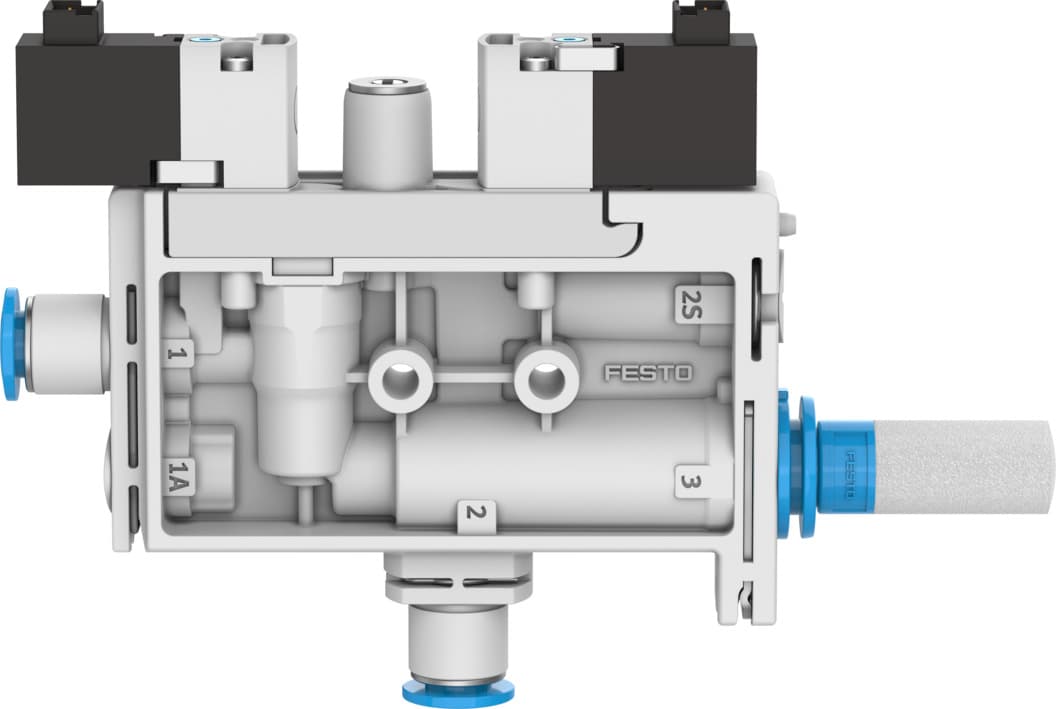

ovel-10-h-15-pq-vq6-uc-c-a-h3
Selling Points
- 1The OVEL-10-H-15-PQ-VQ6-UC-C-A-H3 vacuum generator offers high vacuum performance, with a maximum vacuum of 92% and operating pressures up to 0.38 MPa, 3.8 bar, and 55.1 psi.
- 2Equipped with an electric ejector pulse, this unit ensures efficient suction flow rates of up to 21 l/min against atmosphere, making it suitable for various industrial applications.
- 3Utilizing a piezoresistive pressure sensor, the OVEL-10-H-15-PQ-VQ6-UC-C-A-H3 provides accurate pressure measurements within the range of -0.1 MPa to 0 MPa, -1 bar to 0 bar, and -14.5 psi to 0 psi.
- 4The vacuum generator features integrated functions such as flow control, pressure transmitter, electric on-off valve, and filter, enhancing its versatility and ease of use.
- 5With a nominal size of 0.95 mm and a grid dimension of 15 mm, the OVEL-10-H-15-PQ-VQ6-UC-C-A-H3 is designed for compact installations, making it ideal for space-constrained industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.95mm | Width dimension | 15mm |
Muffler construction type | Closed | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Grade of filtration | 40μm |
Manual override | Non-detenting | Integrated function | Electric ejector pulse Flow control Shut off valve, electric Compressed air filter Muffler, closed |
Structural design | T-shape | Symbol | 00995808 |
Valve function | Closed | Operating pressure for max. suction rate | 58psi |
Operating pressure | 29psi 101.5psi | Operating pressure for max. vacuum | 59.45psi |
Max. vacuum | 92% | Nominal operating pressure | 58psi |
Max. suction rate with respect to atmosphere | 21l/min | Air supply time at nominal operating pressure with ejector pulse | 1s |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Coil characteristics | 24 V DC: 1.0 W | Certification | c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 50°C |
Noise level at nominal operating pressure | 56dB(A) | Degree of protection | IP40 |
Ambient temperature | 0°C 50°C | Product weight | 57g |
Electrical connection input, function | Ejector pulse Vacuum generator | Electrical connection input, connection type | 2x plugs |
Electrical input connection, connection technology | Connection diagram H | Electrical connection, input, number of pins/wires | 2 |
Electrical connection for input, connection pattern | 00995626 | Electrical input connection, mounting type | Snap-locking |
Type of mounting | With through-hole | Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm |
Pneumatic connection 3 | Muffler, closed | Vacuum connection | For pneumatic tubing outside diameter 6 mm |
Material of connecting thread | POM | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Compressed air filter material | POM | Housing material | PA-reinforced |
Material of adjusting screw | Steel | Muffler material | PA-reinforced PE |
Material of screws | Steel | Material of jet nozzle | Wrought aluminum alloy |
Manufacturer ID | 8142126 |
Specifications may be subject to change without notice
