Product Model

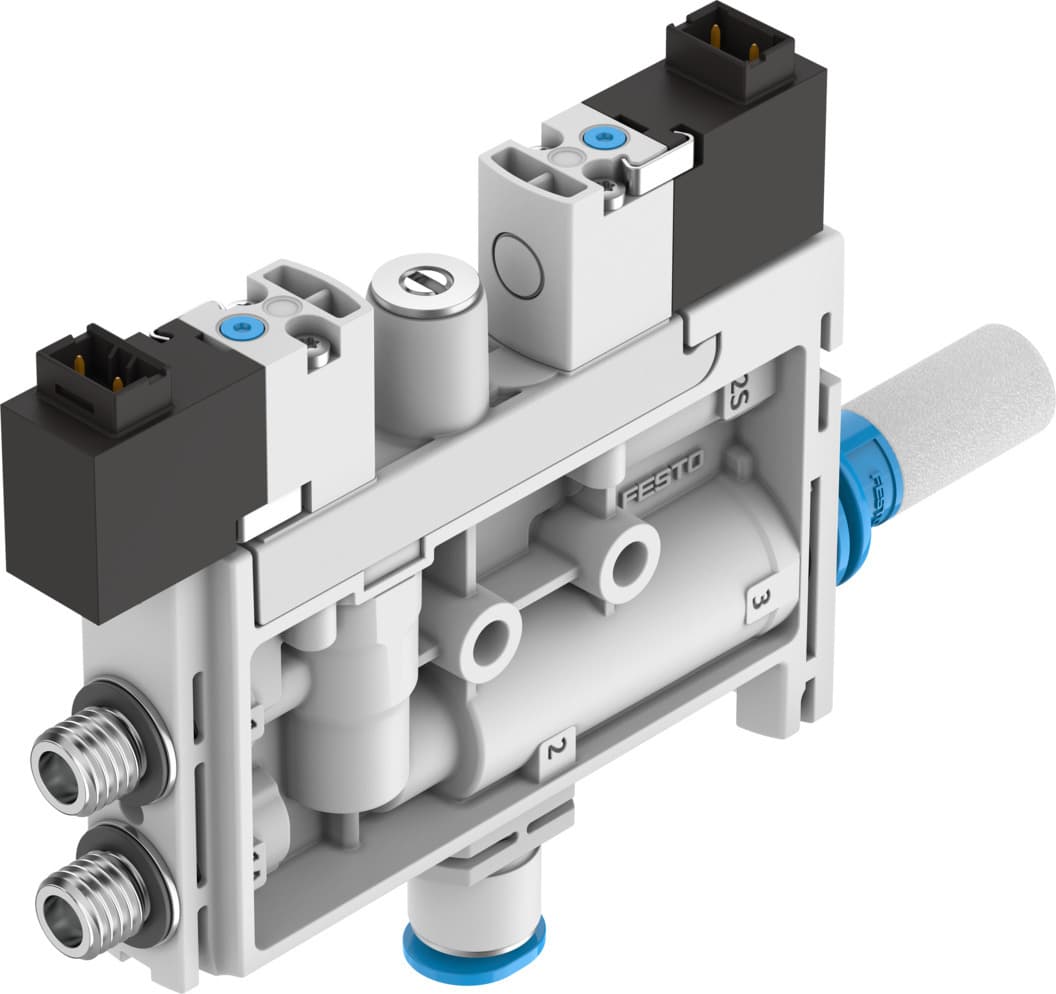

ovel-10-h-15-p-vq6-uc-c-a-h3
Selling Points
- 1The OVEL-10-H-15-P-VQ6-UC-C-A-H3 vacuum generator delivers exceptional high vacuum levels, making it ideal for demanding industrial applications.
- 2Equipped with a piezoresistive pressure sensor and LED indicator, this vacuum generator offers precise control and real-time monitoring capabilities.
- 3The unit features an optional mounting position, allowing for versatile installation in various industrial settings.
- 4The vacuum generator includes an electric ejector pulse and flow control, enhancing its operational efficiency and reliability.
- 5Compatible with IO-Link technology, this vacuum generator simplifies communication with sensors and actuators, reducing complexity and improving connectivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.95mm | Width dimension | 15mm |
Muffler construction type | Closed | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Grade of filtration | 40μm |
Manual override | Non-detenting | Integrated function | Electric ejector pulse Flow control Shut off valve, electric Compressed air filter Muffler, closed |
Structural design | T-shape | Symbol | 00995808 |
Valve function | Closed | Operating pressure for max. suction rate | 58psi |
Operating pressure | 29psi 101.5psi | Operating pressure for max. vacuum | 59.45psi |
Max. vacuum | 92% | Nominal operating pressure | 58psi |
Max. suction rate with respect to atmosphere | 21l/min | Air supply time at nominal operating pressure with ejector pulse | 1s |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Coil characteristics | 24 V DC: 1.0 W | Certification | c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 50°C |
Noise level at nominal operating pressure | 56dB(A) | Degree of protection | IP40 |
Ambient temperature | 0°C 50°C | Product weight | 58g |
Electrical connection input, function | Ejector pulse Vacuum generator | Electrical connection input, connection type | 2x plugs |
Electrical input connection, connection technology | Connection diagram H | Electrical connection, input, number of pins/wires | 2 |
Electrical connection for input, connection pattern | 00995626 | Electrical input connection, mounting type | Snap-locking |
Type of mounting | On terminal strip | Pneumatic connection 1 | Common port |
Pneumatic connection 3 | Muffler, closed | Vacuum connection | For pneumatic tubing outside diameter 6 mm |
Material of connecting thread | POM | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Compressed air filter material | POM | Housing material | PA-reinforced |
Hollow bolt material | Wrought aluminum alloy | Material of adjusting screw | Steel |
Muffler material | PA-reinforced PE | Material of screws | Steel |
Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 8141097 |
Specifications may be subject to change without notice
