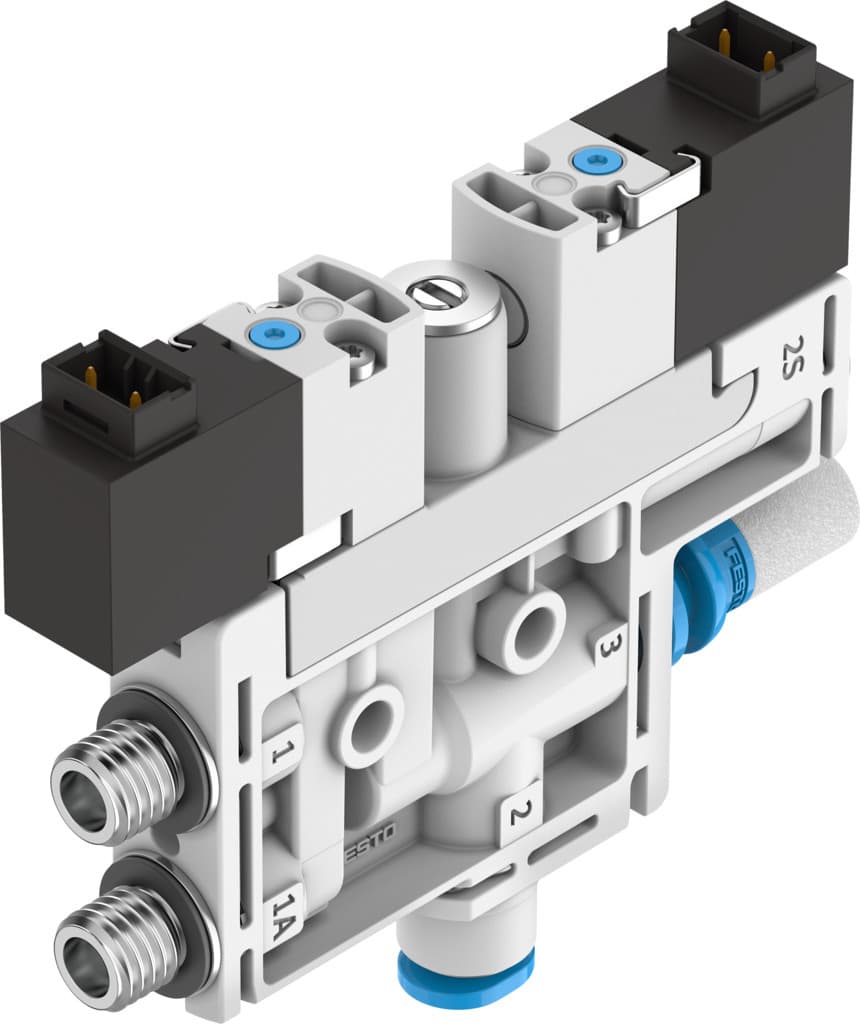

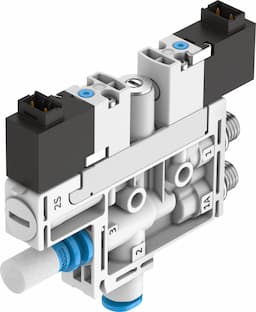

Product Model
ovel-5-h-10-p-vq4-uc-c-a-h3
Selling Points
- 1The OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-H3 offers high vacuum performance with a maximum vacuum of 0.89 bar, making it suitable for demanding applications in the electronics industry.
- 2This vacuum generator features a compact design with a nominal size of 0.45 mm for the Laval nozzle and a grid dimension of 10 mm, allowing for easy integration into various systems.
- 3The device includes an integrated silencer, ensuring quiet operation and reducing noise levels to 64 dB(A) at nominal operating pressure.
- 4The OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-H3 supports IO-Link, enabling simple commissioning and parameterization through teach-in via display and pushbuttons.
- 5With 2x plugs for electrical input and a cable connection for output, this vacuum generator offers versatile connectivity options, including PNP/NPN switchable outputs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 10mm |
Muffler construction type | Closed | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Grade of filtration | 40μm |
Manual override | Non-detenting | Integrated function | Electric ejector pulse Flow control Shut off valve, electric Compressed air filter Muffler, closed |
Structural design | T-shape | Symbol | 00995808 |
Valve function | Closed | Operating pressure for max. suction rate | 43.5psi |
Operating pressure | 29psi 101.5psi | Operating pressure for max. vacuum | 63.8psi |
Max. vacuum | 89% | Nominal operating pressure | 58psi |
Max. suction rate with respect to atmosphere | 4l/min | Air supply time at nominal operating pressure with ejector pulse | 2s |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Coil characteristics | 24 V DC: 1.0 W | Certification | c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 50°C |
Noise level at nominal operating pressure | 51dB(A) | Degree of protection | IP40 |
Ambient temperature | 0°C 50°C | Product weight | 40g |
Electrical connection input, function | Ejector pulse Vacuum generator | Electrical connection input, connection type | 2x plugs |
Electrical input connection, connection technology | Connection diagram H | Electrical connection, input, number of pins/wires | 2 |
Electrical connection for input, connection pattern | 00995626 | Electrical input connection, mounting type | Snap-locking |
Type of mounting | On terminal strip | Pneumatic connection 1 | Common port |
Pneumatic connection 3 | Muffler, closed | Vacuum connection | For pneumatic tubing outside diameter 4 mm |
Material of connecting thread | POM | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Compressed air filter material | POM | Housing material | PA-reinforced |
Hollow bolt material | Wrought aluminum alloy | Material of adjusting screw | Steel |
Muffler material | PA-reinforced PE | Material of screws | Steel |
Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 8141094 |
Specifications may be subject to change without notice
