Product Model

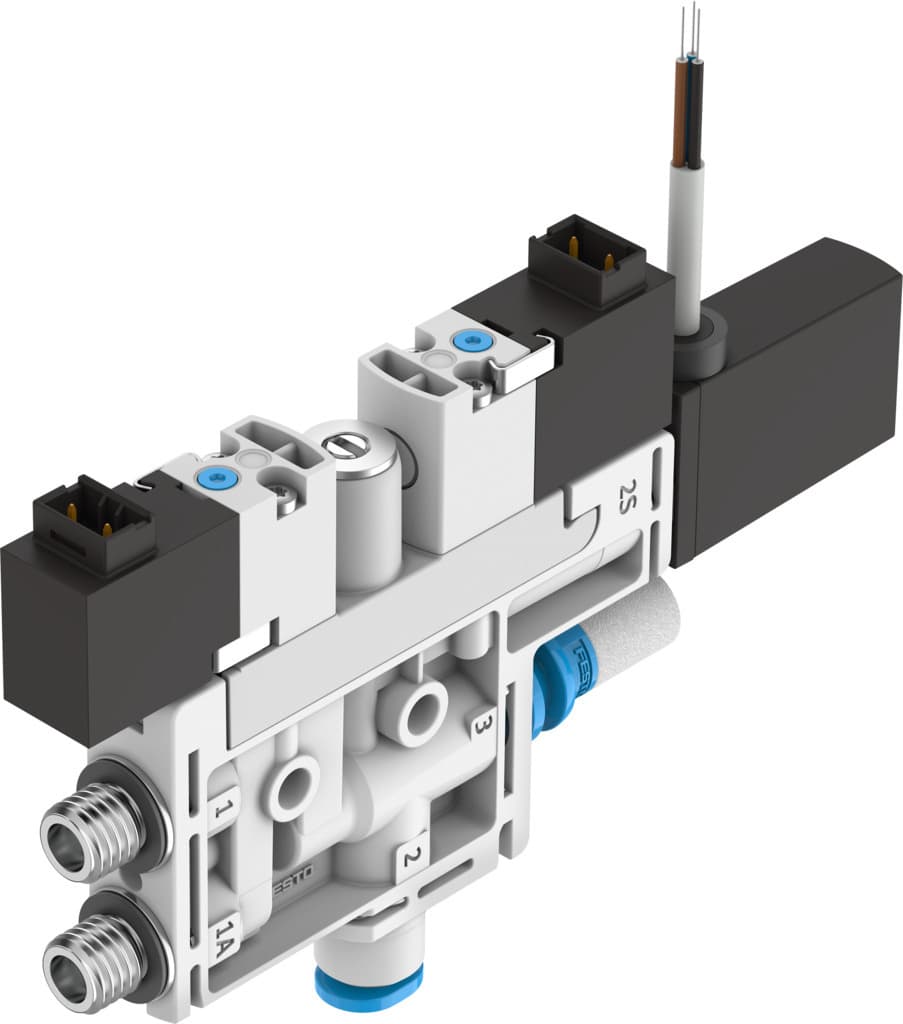

ovel-5-h-10-p-vq4-uc-c-a-v1pnlk-h3
Selling Points
- 1The OVEL-5-H-10-P-VQ4-UC-C-A-V1PNLK-H3 offers high vacuum capabilities, ensuring efficient operation in various applications.
- 2Equipped with an electric ejector pulse, flow control, shut off valve, and pressure sensor, this vacuum generator provides comprehensive functionality.
- 3Straightforward mounting with retaining screws makes installation quick and hassle-free, reducing setup time and effort.
- 4Integrated silencers ensure quiet operation, minimizing noise pollution and creating a more comfortable working environment.
- 5The vacuum generator features an integrated filter with a grade of filtration of 40 μm, reducing contamination and maintaining clean operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 10mm |
Muffler construction type | Closed | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Grade of filtration | 40μm |
Manual override | Non-detenting | Integrated function | Electric ejector pulse Flow control Pressure sensor Shut off valve, electric Compressed air filter Muffler, closed |
Structural design | T-shape | Switching element function | N/C contact/N/O contact switchable |
Switching function | Freely programmable | Symbol | 00995804 |
Valve function | Closed | Method of measurement | Piezoresistive pressure sensor with display |
Display type | LED display 2-digit | Setting options | IO-Link? Teach-in Via display and pushbuttons |
Operating pressure for max. suction rate | 43.5psi | Operating pressure | 29psi 101.5psi |
Operating pressure for max. vacuum | 63.8psi | Max. vacuum | 89% |
Nominal operating pressure | 58psi | Max. suction rate with respect to atmosphere | 4l/min |
Air supply time at nominal operating pressure with ejector pulse | 2s | DC operating voltage range | 21.6V 26.4V |
Duty cycle | 100% | Switching output | PNP/NPN switchable |
Coil characteristics | 24 V DC: 1.0 W | Certification | c UL us - Listed (OL) |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 50°C |
Noise level at nominal operating pressure | 51dB(A) | Degree of protection | IP40 |
Ambient temperature | 0°C 50°C | Product weight | 75g |
DC sensor operating voltage range | 18V 30V | Pressure measuring range | -14.5psi 0psi |
Electrical connection input, function | Ejector pulse Vacuum generator | Electrical connection input, connection type | 2x plugs |
Electrical input connection, connection technology | Connection diagram H | Electrical connection, input, number of pins/wires | 2 |
Electrical connection for input, connection pattern | 00995626 | Electrical input connection, mounting type | Snap-locking |
Electrical connection output, function | Sensor | Electrical connection output, connection type | Cable |
Electrical connection output, connection technology | Open end | Electrical output connection, number of pins/wires | 3 |
Cable characteristic | Suitable for energy chains | Cable diameter | 2.9mm |
Cable diameter tolerance | ± 0.1 mm | Cable length | 2.5m |
Nominal conductor cross section | 0.14mm2 | Type of mounting | On terminal strip |
Pneumatic connection 1 | Common port | Pneumatic connection 3 | Muffler, closed |
Vacuum connection | For pneumatic tubing outside diameter 4 mm | Color cable sheath | Gray |
Material of connecting thread | POM | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Compressed air filter material | POM | Housing material | PA-reinforced |
Hollow bolt material | Wrought aluminum alloy | Material of cable sheath | PVC |
Material of adjusting screw | Steel | Muffler material | PA-reinforced PE |
Material of screws | Steel | Material of jet nozzle | Wrought aluminum alloy |
Manufacturer ID | 8141086 |
Specifications may be subject to change without notice
