Product Model
ovel-7-h-15-pq-vq4-ua-c-a-v1v-r8
Selling Points

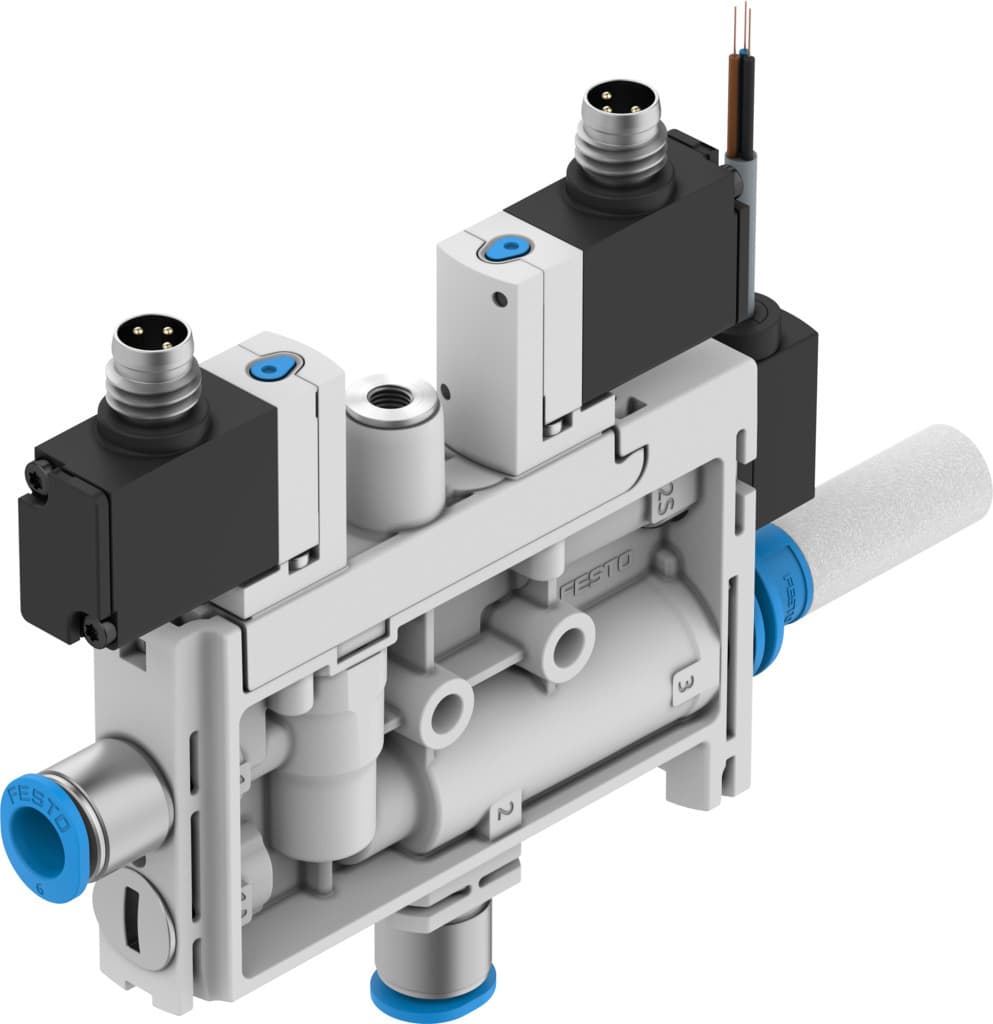

- 1The Festo OVEL-7-H-15-PQ-VQ4-UA-C-A-V1V-R8 vacuum generator offers high vacuum performance with a maximum vacuum of 92% and operating pressures ranging from 0.2 MPa to 0.7 MPa.
- 2This vacuum generator features an integrated silencer, ensuring low-noise operation and reducing contamination of the vacuum system.
- 3Equipped with a standard filtration grade of 40 μm, the OVEL-7-H-15-PQ-VQ4-UA-C-A-V1V-R8 provides reliable filtration for your vacuum applications.
- 4The vacuum generator offers freely programmable switching functions, allowing for customizable operation and integration with various control systems.
- 5With an operating voltage range of 21.6 V to 26.4 V and a duty cycle of 100%, the OVEL-7-H-15-PQ-VQ4-UA-C-A-V1V-R8 ensures efficient operation and reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.7mm | Width dimension | 15mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Grade of filtration | 40μm |
Manual override | Non-detenting | Integrated function | Electric ejector pulse Flow control Pressure transmitter Shut off valve, electric Compressed air filter Pneumatic muffler open |
Structural design | T-shape | Symbol | 00995804 |
Valve function | Closed | Method of measurement | Piezoresistive pressure sensor |
Operating pressure for max. suction rate | 58psi | Operating pressure | 29psi 101.5psi |
Operating pressure for max. vacuum | 65.25psi | Max. vacuum | 92% |
Nominal operating pressure | 58psi | Max. suction rate with respect to atmosphere | 17l/min |
Air supply time at nominal operating pressure with ejector pulse | 1.2s | Analog output | 0 - 10 V |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Coil characteristics | 24 V DC: 1.28 W | Certification | c UL us - Listed (OL) |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 50°C |
Noise level at nominal operating pressure | 61dB(A) | Degree of protection | IP40 |
Ambient temperature | 0°C 50°C | Product weight | 97g |
DC sensor operating voltage range | 18V 30V | Pressure measuring range | -14.5psi 0psi |
Electrical connection input, function | Ejector pulse Vacuum generator | Electrical connection input, connection type | 2x plugs |
Electrical input connection, connection technology | M8x1, A-coded as per EN 61076-2-104 | Electrical connection, input, number of pins/wires | 2 |
Electrical connection for input, connection pattern | 00991155 | Electrical input connection, mounting type | Snap-locking |
Electrical connection output, function | Sensor | Electrical connection output, connection type | Cable |
Electrical connection output, connection technology | Open end | Electrical output connection, number of pins/wires | 3 |
Cable characteristic | Suitable for energy chains | Cable diameter | 2.9mm |
Cable diameter tolerance | ± 0.1 mm | Cable length | 2.5m |
Nominal conductor cross section | 0.14mm2 | Type of mounting | With through-hole |
Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm | Pneumatic connection 3 | Pneumatic muffler open |
Vacuum connection | For pneumatic tubing outside diameter 4 mm | Color cable sheath | Gray |
Material of connecting thread | POM | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Compressed air filter material | POM | Housing material | PA-reinforced |
Material of cable sheath | PVC | Material of adjusting screw | Steel |
Muffler material | PA-reinforced PE | Material of screws | Steel |
Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 8152244 |
Specifications may be subject to change without notice
