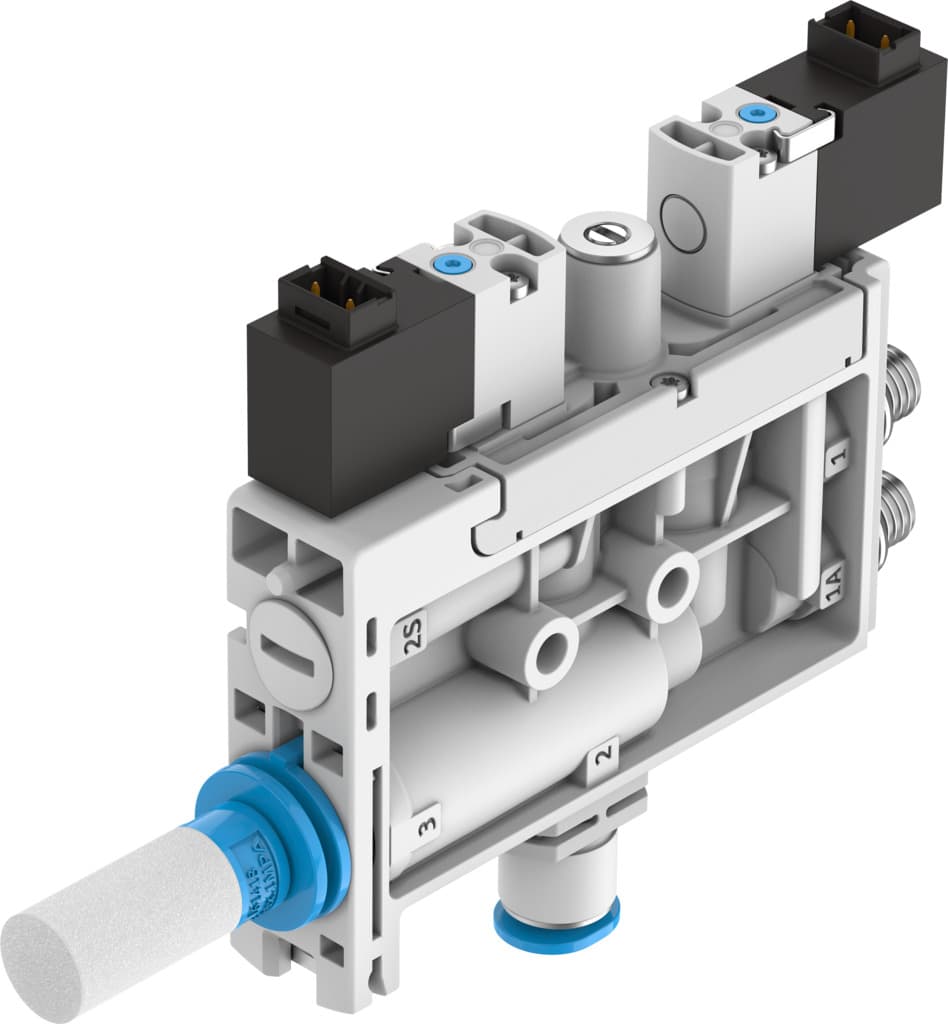

Product Model
ovel-7-h-15-p-vq4-uc-c-a-h3
Selling Points
- 1High Vacuum Performance: The Festo OVEL-7-H-15-P-VQ4-UC-C-A-H3 Vacuum Generator offers high vacuum performance, making it suitable for various industrial applications.
- 2Compact Design: This vacuum generator is designed with a compact 15mm size, ensuring efficient use of space in your automation setup.
- 3Easy Connectivity: Equipped with a 4mm push-in connector, the OVEL-7-H-15-P-VQ4-UC-C-A-H3 provides easy and secure connections for pneumatic tubing.
- 4Silencer Included: The close silencer UC reduces noise levels, creating a more controlled and quieter working environment.
- 5Versatile Configuration: Available in various configurations, the OVEL-7-H-15-P-VQ4-UC-C-A-H3 can be tailored to meet specific requirements of your industrial automation system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.7mm | Width dimension | 15mm |
Muffler construction type | Closed | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Grade of filtration | 40μm |
Manual override | Non-detenting | Integrated function | Electric ejector pulse Flow control Shut off valve, electric Compressed air filter Muffler, closed |
Structural design | T-shape | Symbol | 00995808 |
Valve function | Closed | Operating pressure for max. suction rate | 58psi |
Operating pressure | 29psi 101.5psi | Operating pressure for max. vacuum | 69.6psi |
Max. vacuum | 92% | Nominal operating pressure | 58psi |
Max. suction rate with respect to atmosphere | 17l/min | Air supply time at nominal operating pressure with ejector pulse | 1.2s |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Coil characteristics | 24 V DC: 1.0 W | Certification | c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 50°C |
Noise level at nominal operating pressure | 56dB(A) | Degree of protection | IP40 |
Ambient temperature | 0°C 50°C | Product weight | 57g |
Electrical connection input, function | Ejector pulse Vacuum generator | Electrical connection input, connection type | 2x plugs |
Electrical input connection, connection technology | Connection diagram H | Electrical connection, input, number of pins/wires | 2 |
Electrical connection for input, connection pattern | 00995626 | Electrical input connection, mounting type | Snap-locking |
Type of mounting | On terminal strip | Pneumatic connection 1 | Common port |
Pneumatic connection 3 | Muffler, closed | Vacuum connection | For pneumatic tubing outside diameter 4 mm |
Material of connecting thread | POM | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Compressed air filter material | POM | Housing material | PA-reinforced |
Hollow bolt material | Wrought aluminum alloy | Material of adjusting screw | Steel |
Muffler material | PA-reinforced PE | Material of screws | Steel |
Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 8141095 |
Specifications may be subject to change without notice
