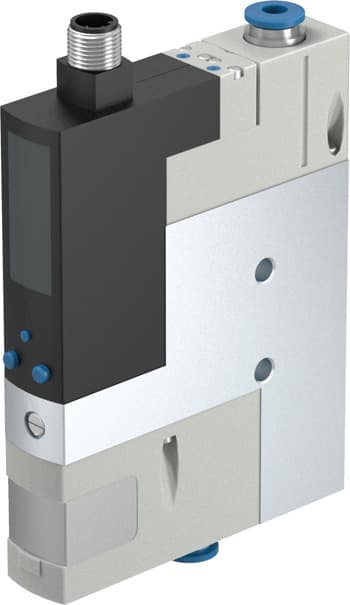

Product Model
ovem-05-h-b-qo-ce-n-lk
Selling Points
- 1High suction flow rate of 6L/min for efficient operation.
- 2Compact design with a 0.45mm Laval nozzle for precise control.
- 3Modular structure with integrated functions like ejector pulse valve and flow control.
- 4Easy installation with QS fittings and M12 plug connections.
- 5Advanced IO-Link communication for seamless integration and diagnostics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.45mm | Width dimension | 20mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Grade of filtration | 40μm |
Manual override | Non-detenting Additionally via operating buttons | Integrated function | Ejector pulse valve, electric Flow control Shut off valve, electric Compressed air filter Air saving function, electrical Non-return valve Pneumatic muffler open Vacuum switch |
Structural design | Modular | Short-circuit protection | yes |
Measured variable | Relative pressure | Measuring principle | Piezoresistive |
Switching element function | N/C contact N/O contact | Switching function | Window comparator Threshold value comparator |
Symbol | 00992094 | Valve function | Closed |
Reverse polarity protection | for all electrical connections | Switching input to standard | IEC 61131-2 |
Display type | 4-character alphanumeric Back-lit LCD | Display range | -0.999bar 0bar |
Displayable unit(s) | bar | Setting range hysteresis | -0.9bar 0bar |
Setting options | IO-Link? Via display and pushbuttons | Switching position indication | LCD |
Switching status indication | Optical | Setting range threshold value | -0.999bar 0bar |
Operating pressure | 2bar 8bar | Operating pressure for max. vacuum | 5.1bar |
Max. vacuum | 93% | Nominal operating pressure | 6bar |
Max. suction rate with respect to atmosphere | 6l/min | Air supply time at nominal operating pressure | 0.2s |
DC operating voltage range | 20.4V 27.6V | Duty cycle | 100% |
Insulation voltage | 50V | Max. output current | 100mA |
Residual current | 0.1mA | Switching output | 2xPNP |
Voltage drop | 1.8V | Coil characteristics | 24 V DC: low-current phase 0.3 W, high-current phase 2.55 W |
Surge resistance | 0.8kV | Overload protection | Available |
Contamination level | 3 | Certification | RCM compliance mark c UL us - Listed (OL) |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Temperature of medium | 0°C 50°C |
Relative air humidity | 5 - 85 % | Noise level at nominal operating pressure | 51dB(A) |
Degree of protection | IP65 | Protection class | III |
Ambient temperature | 0°C 50°C | Max. tightening torque | 0.8 Nm with internal thread 2.5 Nm with through-hole |
Product weight | 325g | Pressure measuring range | -1bar 0bar |
Accuracy in ± % FS | 3%FS | Reproducibility, switching value FS | 0.6% |
Protocol | IO-Link? | IO-Link?, protocol version | Device V 1.1 |
IO-Link?, profile | Smart sensor profile | IO-Link?, function classes | Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel |
IO-Link?, communication mode | COM2 (38,4 kBd) | IO-Link?, port class | A |
IO-Link?, process data width OUT | 1 Byte | IO-Link?, process data content OUT | 1 bit (ejector pulse ON/OFF) 1 bit (vacuum ON/OFF) |
IO-Link?, process data width IN | 2 Byte | IO-Link?, process data content IN | 14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring) |
IO-Link?, minimum cycle time | 3.5 ms | IO-Link?, data memory required | 500byte |
IO-Link?, device ID | 0x00003E | Electrical connection | 5-pin M12x1 Plug |
Protection against tampering | Electronic interlock | Type of mounting | With through-hole With internal thread With accessories |
Pneumatic connection 1 | QS-6 | Pneumatic connection 3 | QS-8 |
Vacuum connection | QS-6 | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Compressed air filter material | Fabric PA Sintered steel | Housing material | Die-cast aluminum PA-reinforced |
Material of adjusting screw | Steel | Muffler material | Wrought aluminum alloy PU foam |
Material of screws | Steel | Inspection window material | PA |
Material of plug housing | Brass, nickel-plated | Material of pin contacts | Brass, gold-plated |
Material of pins | Steel | Material of jet nozzle | Wrought aluminum alloy |
Material of keypad | TPE-U | Material of pneumatic fitting | Brass, nickel-plated |
Manufacturer ID | 8037693 |
