Product Model
ovem-10-h-b-go-ce-n-1p
Selling Points

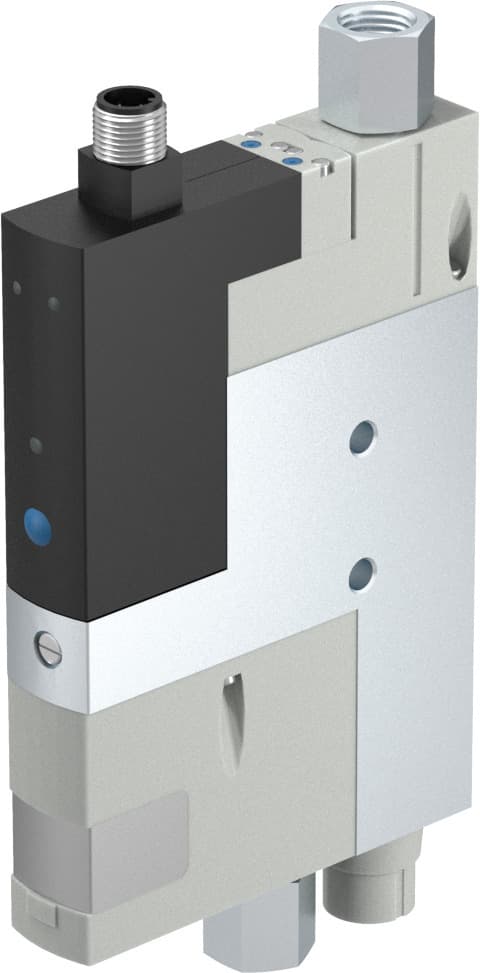

- 1The OVEM-10-H-B-GO-CE-N-1P vacuum generator delivers high suction rates and evacuation times, making it suitable for demanding industrial applications.
- 2This vacuum generator features a modular design, allowing for easy configuration and integration into various systems. It supports multiple functions like ejector pulse valves and flow control valves.
- 3The OVEM-10-H-B-GO-CE-N-1P comes with an open silencer, reducing noise levels and maintenance requirements. The integrated filter with an inspection window ensures secure and efficient maintenance.
- 4Equipped with the latest IO-Link communication standard, this vacuum generator simplifies commissioning and parameterization, enhancing process reliability and reducing machine downtime.
- 5Designed for a wide range of industries, the OVEM-10-H-B-GO-CE-N-1P is ideal for applications requiring gentle, economical, and reliable handling of workpieces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.95mm | Width dimension | 20mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Grade of filtration | 40μm |
Manual override | Non-detenting | Integrated function | Ejector pulse valve, electric Flow control Shut off valve, electric Compressed air filter Non-return valve Pneumatic muffler open Vacuum switch |
Structural design | Modular | Short-circuit protection | yes |
Measured variable | Relative pressure | Measuring principle | Piezoresistive |
Switching element function | N/O contact | Switching function | Threshold value comparator Threshold value with fixed hysteresis |
Symbol | 00992094 | Valve function | Closed |
Reverse polarity protection | for all electrical connections | Switching input to standard | IEC 61131-2 |
Display type | LED | Setting options | Teach-in |
Switching position indication | LED | Switching status indication | Optical |
Setting range threshold value | -1bar 0bar | Operating pressure | 2bar 8bar |
Operating pressure for max. vacuum | 3.5bar | Max. vacuum | 93% |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 19.5l/min |
Air supply time at nominal operating pressure | 0.2s | DC operating voltage range | 20.4V 27.6V |
Duty cycle | 100% | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Insulation voltage | 50V | Idle current | 80mA |
Max. output current | 100mA | Residual current | 0.1mA |
Switching output | PNP | Voltage drop | 1.5V |
Coil characteristics | 24 V DC: low-current phase 0.3 W, high-current phase 2.55 W | Surge resistance | 0.8kV |
Overload protection | Available | Contamination level | 3 |
Certification | RCM compliance mark c UL us - Listed (OL) | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Temperature of medium | 0°C 50°C | Relative air humidity | 5 - 85 % |
Noise level at nominal operating pressure | 73dB(A) | Degree of protection | IP65 |
Protection class | III | Ambient temperature | 0°C 50°C |
Max. tightening torque | 0.8 Nm with internal thread 2.5 Nm with through-hole | Product weight | 325g |
Pressure measuring range | -1bar 0bar | Accuracy in ± % FS | 0.5%FS |
Hysteresis | 0.02bar | Reproducibility, switching value FS | 0.6% |
Input switching logic | PNP (positive switching) | Electrical connection | 5-pin M12x1 Plug |
Type of mounting | With through-hole With internal thread With accessories | Pneumatic connection 1 | G1/4 |
Pneumatic connection 3 | Pneumatic muffler integrated | Vacuum connection | G1/4 |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | POM | Compressed air filter material | Fabric PA Sintered steel |
Material of filter housing | PA-reinforced | Housing material | Die-cast aluminum PA-reinforced |
Material of adjusting screw | Steel | Muffler material | Wrought aluminum alloy PU foam |
Material of screws | Steel | Material of plug housing | Brass, nickel-plated |
Material of pin contacts | Brass, gold-plated | Material of pins | Steel |
Material of jet nozzle | Wrought aluminum alloy | Material of keypad | PA-reinforced |
Material of pneumatic fitting | Wrought aluminum alloy, anodized | Manufacturer ID | 540027 |
Specifications may be subject to change without notice
