Product Model

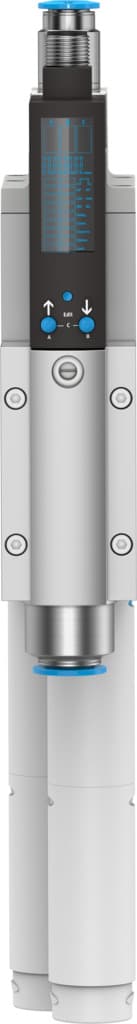

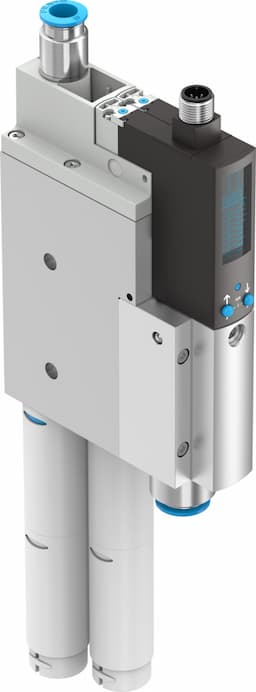

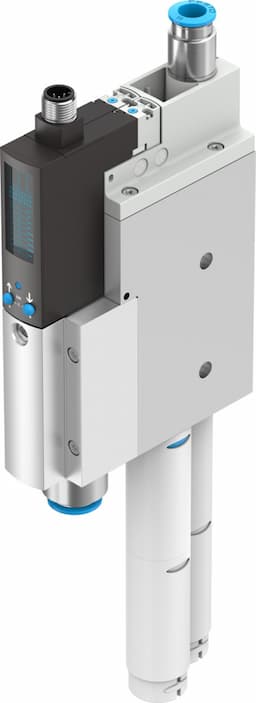

ovem-30-h-c-qo-ce-n-lk
Selling Points
- 1High vacuum performance with a 3.0mm laval nozzle and 36mm housing width.
- 2Modular design for easy integration and customization.
- 3Advanced IO-Link connectivity for precise control and monitoring.
- 4Integrated functions include electric ejector pulse valve, flow control, and air saving functions.
- 5Robust construction with reverse polarity protection and short circuit current rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 3mm | Width dimension | 36mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High vacuum Standard | Grade of filtration | 40μm |
Manual override | Non-detenting Additionally via operating buttons | Integrated function | Ejector pulse valve, electric Flow control Shut off valve, electric Compressed air filter Air saving function, electrical Non-return valve Pneumatic muffler open Vacuum switch |
Structural design | Modular | Short-circuit protection | yes |
Measured variable | Relative pressure | Measuring principle | Piezoresistive |
Switching element function | N/C contact N/O contact | Switching function | Window comparator Threshold value comparator |
Symbol | 00992094 | Valve function | Closed |
Reverse polarity protection | for all electrical connections | Switching input to standard | IEC 61131-2 |
Display type | 4-character alphanumeric Back-lit LCD | Display range | -0.999bar 0bar |
Displayable unit(s) | bar | Setting range hysteresis | -0.9bar 0bar |
Setting options | IO-Link? Via display and pushbuttons | Switching position indication | LCD |
Switching status indication | Optical | Setting range threshold value | -0.999bar 0bar |
Operating pressure | 2bar 8bar | Operating pressure for max. vacuum | 4bar |
Max. vacuum | 93% | Nominal operating pressure | 6bar |
Max. suction rate with respect to atmosphere | 181l/min | Air supply time at nominal operating pressure | 0.2s |
DC operating voltage range | 20.4V 27.6V | Duty cycle | 100% |
Insulation voltage | 50V | Idle current | 70mA |
Max. output current | 100mA | Residual current | 0.1mA |
Switching output | 2xPNP | Voltage drop | 1.8V |
Coil characteristics | 24 V DC: low-current phase 0.3 W, high-current phase 2.55 W | Surge resistance | 0.8kV |
Overload protection | Available | Contamination level | 3 |
Certification | RCM compliance mark c UL us - Listed (OL) | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Temperature of medium | 0°C 50°C | Relative air humidity | 5 - 85 % |
Noise level at nominal operating pressure | 75dB(A) | Degree of protection | IP65 |
Protection class | III | Ambient temperature | 0°C 50°C |
Max. tightening torque | 0.8 Nm with internal thread 2.5 Nm with through-hole | Product weight | 825g |
Pressure measuring range | -1bar 0bar | Accuracy in ± % FS | 3%FS |
Reproducibility, switching value FS | 0.6% | Protocol | IO-Link? |
IO-Link?, protocol version | Device V 1.1 | IO-Link?, profile | Smart sensor profile |
IO-Link?, function classes | Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel | IO-Link?, communication mode | COM2 (38,4 kBd) |
IO-Link?, port class | A | IO-Link?, process data width OUT | 1 Byte |
IO-Link?, process data content OUT | 1 bit (ejector pulse ON/OFF) 1 bit (vacuum ON/OFF) | IO-Link?, process data width IN | 2 Byte |
IO-Link?, process data content IN | 14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring) | IO-Link?, minimum cycle time | 3.5 ms |
IO-Link?, data memory required | 500byte | IO-Link?, device ID | 0x00003E |
Electrical connection | 5-pin M12x1 Plug | Protection against tampering | Electronic interlock |
Type of mounting | With through-hole With internal thread With accessories | Pneumatic connection 1 | QS-10 |
Pneumatic connection 3 | Pneumatic muffler | Vacuum connection | QS-12 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Female nozzle material | POM | Compressed air filter material | Fabric PA Sintered steel |
Material of filter housing | PA-reinforced | Housing material | Wrought aluminum alloy PA-reinforced |
Material of adjusting screw | Steel | Muffler material | Wrought aluminum alloy POM PU foam |
Material of screws | Steel | Inspection window material | PA |
Material of plug housing | Brass, nickel-plated | Material of pin contacts | Brass, gold-plated |
Material of pins | Steel | Material of jet nozzle | Wrought aluminum alloy |
Material of keypad | TPE-U | Material of pneumatic fitting | Brass, nickel-plated |
Manufacturer ID | 8070098 |
Specifications may be subject to change without notice
