Product Model

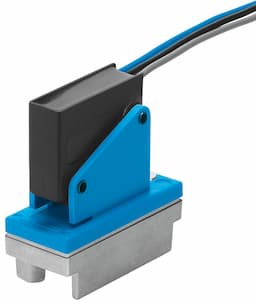

pe-1/8-1n-sw
Selling Points
- 1Precise Relative Pressure Measurement: The PE-1/8-1N-SW measures relative pressure accurately using a pneumatic/electric pressure transducer.
- 2Robust Operating Pressure Range: Operates from 0 to 8 bar with a maximum overload pressure of 12 bar, ensuring reliable performance in various applications.
- 3Lubricated Operation Possible: Compatible with compressed air in accordance with ISO8573-1:2010, allowing for lubricated operation for enhanced durability.
- 4Flexible Mounting Options: Can be mounted on a 1n frame with a through-hole or optionally on a mounting frame, providing flexibility in installation.
- 5High Protection Rating: Features IP67 protection, ensuring the device is resistant to dust and water, making it suitable for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 60947-5-1 | Symbol | 00995409 |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
Measured variable | Relative pressure | Method of measurement | Pneumatic/electric pressure transducer |
Operating pressure | 0bar 8bar | Max. overload pressure | 12bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible |
Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
Switching output | Contact-based | Switching function | Threshold value with fixed hysteresis |
Switching element function | Changeover switch | Max. switch-on point | 2bar |
Min. switch-off point | 0.5bar | Max. switching frequency | 1Hz |
Minimum load current | 100mA | Operating voltage range AC | 12V 250V |
DC operating voltage range | 12V 250V | Utilization category for inductive load | AC-14 DC-13 |
Utilization category for ohmic load | AC-12 DC-12 | Electrical connection | 3 connecting wires |
Electrical connection 1, connection technology | Open end | Cable length | 0.5m |
Material of cable sheath | PVC | Type of mounting | Optionally: On mounting frame 1n With through-hole |
Mounting position | Any | Pneumatic connection | G1/8 |
Product weight | 50g | Housing material | Die-cast aluminum PA-reinforced Steel VMQ (silicone) |
Switching contact material | Silver | Electrical connection material | Tin-plated |
Diaphragm material | TPE-U(PU) | Setting options | Permanently set |
Degree of protection | IP67 | Insulation voltage | 2000V |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Contamination level | 3 |
Manufacturer ID | 6484 |
Specifications may be subject to change without notice
