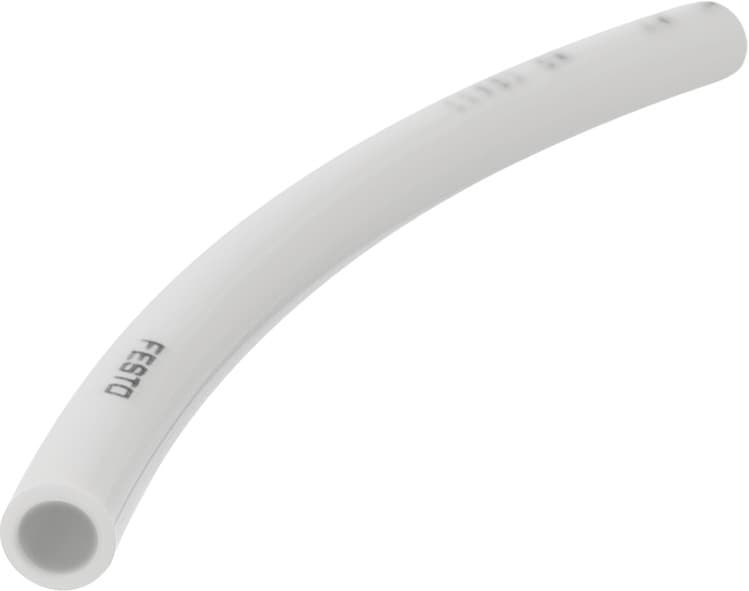

Festo PEN-10X1.5-SI Plastic Tubing - High-Quality Pneumatic Solution

Selling Points

1The Festo PEN-10X1.5-SI plastic tubing features an outside diameter of 10 mm and an inside diameter of 7 mm, making it ideal for various pneumatic applications.
2This tubing has a flow-relevant bending radius of 40 mm and a minimum bending radius of 23.5 mm, ensuring optimal performance in curved installations.
3The PEN-10X1.5-SI is suitable for energy chains and can operate under temperature-dependent pressures ranging from -13.775 psi to 145 psi, making it versatile for different environments.
4Certified by the German Technical Control Board (TÜV), this tubing meets high standards of quality and safety, ensuring reliable performance in various industrial settings.
5The product is RoHS-compliant, made from PE material with a Shore hardness of D 52 +/-3, and is available in silver color with a product weight of approximately 0.038 kg/m.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Outside diameter	10mm	Bending radius relevant for flow rate	40mm
Inside diameter	7mm	Min. bending radius	23.5mm
Tubing characteristics	Suitable for energy chains	Temperature-dependent operating pressure	-13.775psi 145psi
Information on operating pressure	Water: max. 0.6 MPa at 0 - 50 °C	Certification	German Technical Control Board (TüV)
Certificate issuing authority	B 013277 0506 00	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
LABS (PWIS) conformity	VDMA24364-B2-L	Cleanroom class	Statically installed element, no meaningful evaluation possible according to ISO 14644-1
Ambient temperature	-30°C 60°C	Product weight by length	0.03766kg/m
Pneumatic connection	For plug connection outside diameter 10 mm	Color	Silver
Shore hardness	D 52 +/-3	Note on materials	RoHS-compliant
Material of pneumatic tubing	PE	Manufacturer ID	551465

Specifications may be subject to change without notice
