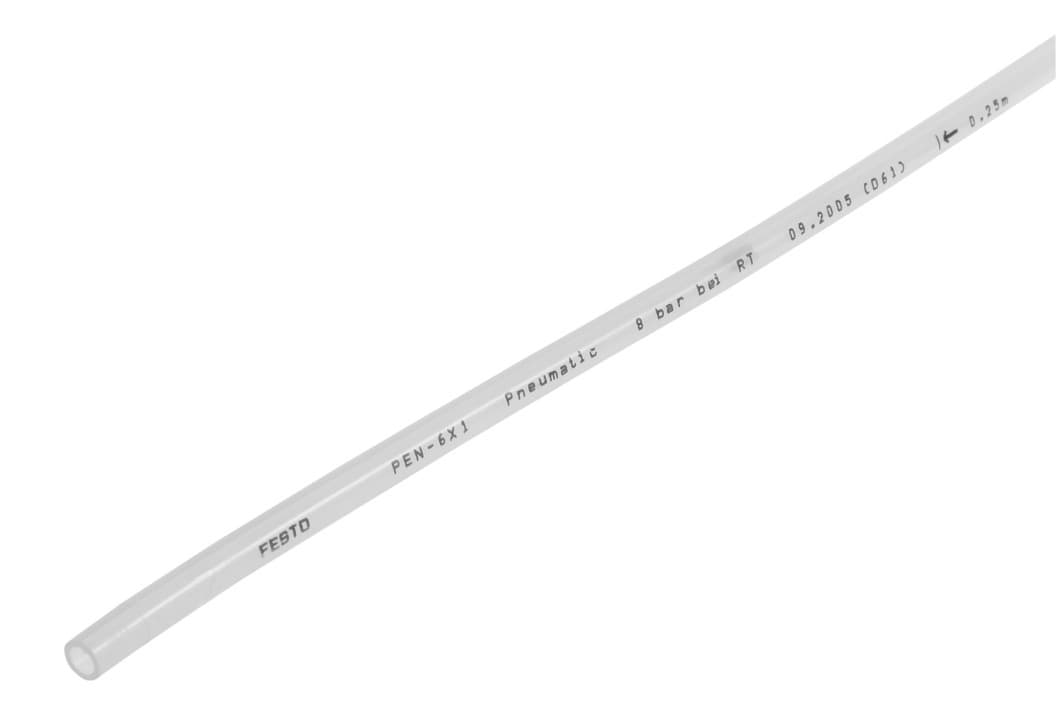

Product Model
pen-14x2-nt
Selling Points
- 1High-Cycle Rate Compatibility: Compatible with cable carriers for applications with high cycle rates, exceeding 5 million cycles.
- 2TÜV Certified: Meets stringent safety standards, certified by the German Technical Control Board (TÜV).
- 3Flexible Operating Pressure: Operates between -0.95 to 10 bar, suitable for compressed air and water.
- 4Robust Construction: Made from polyethylene (PE), ensuring durability and resistance to bending.
- 5Easy Installation: Compatible with push-in connectors, simplifying installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 14mm | Bending radius relevant for flow rate | 80mm |
Inside diameter | 9.5mm | Min. bending radius | 45mm |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
Ambient temperature | -30°C 60°C | Product weight by length | 0.0773kg/m |
Pneumatic connection | For plug connection outside diameter 14 mm | Color | Natural |
Shore hardness | D 52 +/-3 | Note on materials | RoHS-compliant |
Material of pneumatic tubing | PE | Manufacturer ID | 570517 |
Specifications may be subject to change without notice
