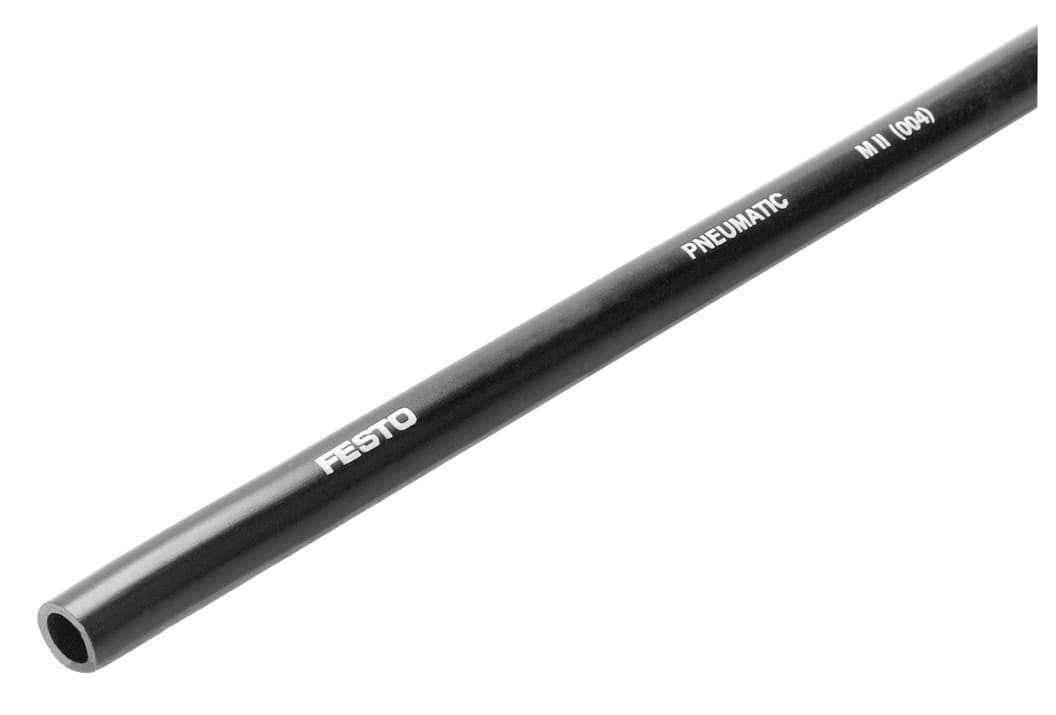

Product Model
pen-14x2-sw
Selling Points
- 1High Cycle Rate Performance: Suitable for energy chains in applications with high cycle rates, exceeding 5 million cycles.
- 2Durable Construction: Made from high-quality plastic, ensuring long-lasting performance and minimal wear.
- 3Temperature Resistance: Operates within a wide temperature range of -30°C to 60°C.
- 4Versatile Use: Compatible with compressed air (ISO8573-1:2010) and water, as per manufacturer’s declaration.
- 5TÜV Authorized: Meets stringent quality standards with TÜV authorization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 14mm | Bending radius relevant for flow rate | 80mm |
Inside diameter | 9.5mm | Min. bending radius | 45mm |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
Ambient temperature | -30°C 60°C | Product weight by length | 0.0773kg/m |
Pneumatic connection | For plug connection outside diameter 14 mm | Color | Black |
Shore hardness | D 52 +/-3 | Note on materials | RoHS-compliant |
Material of pneumatic tubing | PE | Manufacturer ID | 570516 |
Specifications may be subject to change without notice
