Product Model

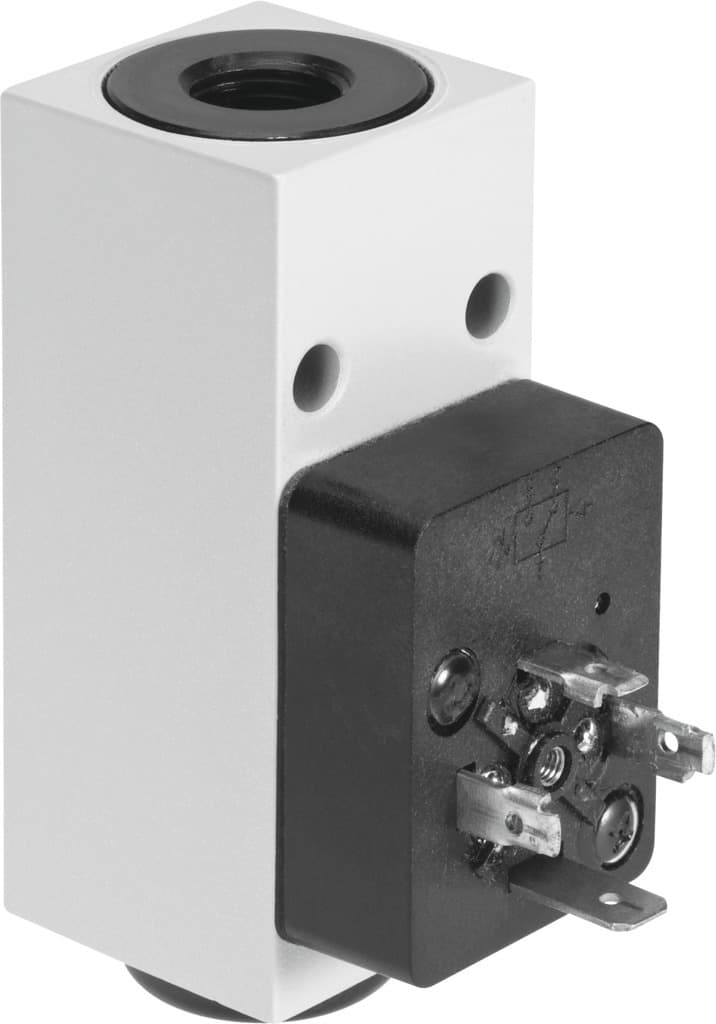

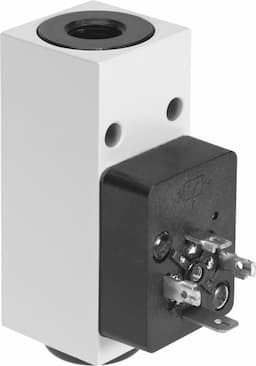

pev-1/4-b-od
Selling Points
- 1The Festo PEV-1/4-B-OD pressure switch meets the EN 60947-5-1 standard, ensuring high-quality and reliable performance in industrial automation.
- 2This pressure switch operates effectively with compressed air and water, with a wide range of 1 to 12 bar, making it suitable for various applications.
- 3Constructed from die-cast aluminum with silver switch contacts, the PEV-1/4-B-OD offers durability and resistance to corrosion, ensuring long-lasting operation.
- 4With a maximum switching frequency of 3 Hz and output voltages of up to 250V AC and 125V DC, this pressure switch provides efficient control over your automation system.
- 5Featuring a through-hole mounting type and a cubic design to DIN 43650, the PEV-1/4-B-OD is easy to integrate into your existing setup, offering flexibility in installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 60947-5-1 | Symbol | 00991471 |
Certification | CCC | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Note on materials | RoHS-compliant | Measured variable | Relative pressure |
Method of measurement | Pneumatic/electric pressure transducer | Operating pressure | 1bar 12bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Temperature of medium | -20°C 80°C | Ambient temperature | -20°C 80°C |
Switching element function | Changeover switch | Max. switching frequency | 3Hz |
Max. switching output voltage AC | 250V | Max. switching output voltage DC | 125V |
Max. output current | 5000mA | Minimum load current | 1 mA at 24 V 10 mA at 10 V 100 mA at 5V |
Utilization category for inductive load | AC-14 DC-13 | Utilization category for ohmic load | AC-12 DC-12 |
Electrical connection | Form A Plug as per DIN 43650 Rectangular design | Type of mounting | With through-hole |
Mounting position | Any | Pneumatic connection | G1/4 |
Product weight | 194g | Housing material | Die-cast aluminum |
Switching contact material | Silver | Switching status indication | LED yellow |
Setting range threshold value | 1bar 12bar | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Manufacturer ID | 175250 |
Specifications may be subject to change without notice
