Product Model
pev-1/4-wd-led-230
Selling Points

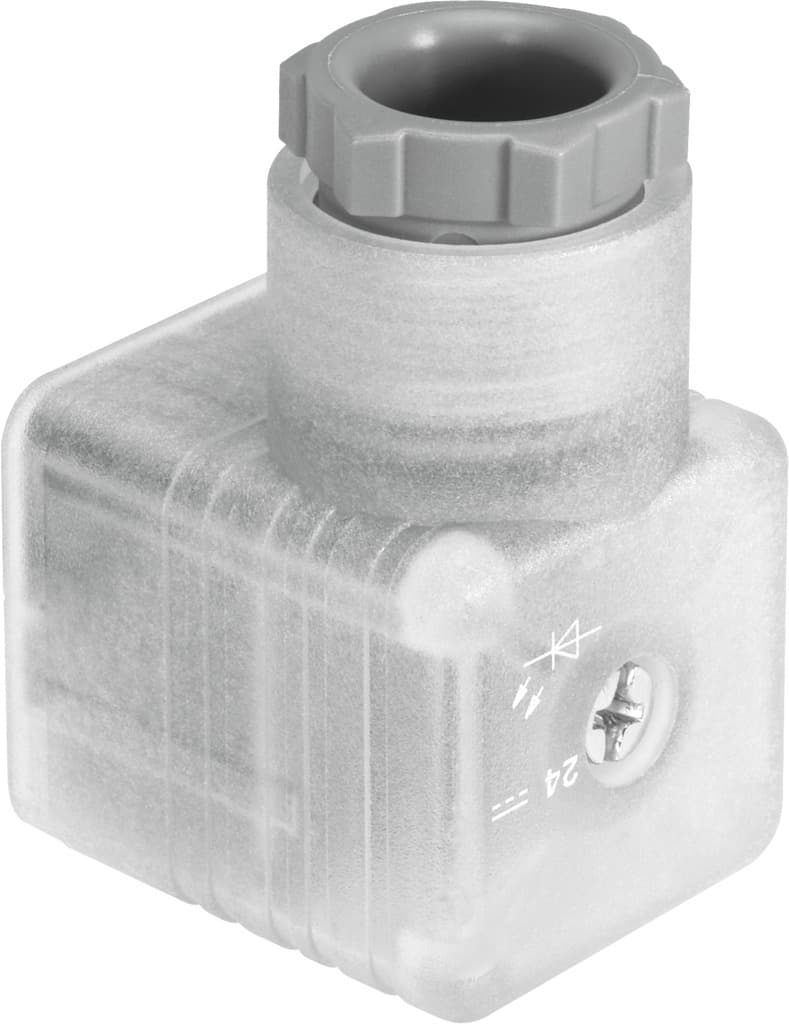

- 1The Festo PEV-1/4-WD-LED-230 is an angled plug socket designed for pressure switches, featuring a yellow LED status display to indicate operating status.
- 2This plug socket operates within a wide voltage range, supporting both AC up to 230 V and DC up to 180 V, ensuring compatibility with various industrial systems.
- 3With a permissible current load of 8 A, the PEV-1/4-WD-LED-230 is suitable for applications requiring moderate to high current handling.
- 4The product is built to meet stringent quality standards, conforming to RoHS and featuring an IP65 protection class for reliable operation in harsh environments.
- 5The Festo PEV-1/4-WD-LED-230 is part of Festo's comprehensive range of electrical connection technologies, ensuring seamless integration into industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 175301-803 | Switching status indication | LED yellow LED green |
Type of mounting | Screwed tightly | Cable outlet | Angled |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | Connection diagram form A based on EN 175301-803 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
Electrical connection 1, type of mounting | Central screw M3 | Electrical connection 2, function | Control side |
Electrical connection 2, connection technology | Screw terminal | Electrical connection 2, number of pins/wires | 5 |
Electrical connection 2, occupied pins/wires | 5 | DC operating voltage range | 140V 180V |
Operating voltage range AC | 150V 230V | Current rating at 40° C | 8A |
Cable fitting | Pg11 | Approved cable diameter | 4.5mm 11mm |
Connection cross section | 0.25mm2 1.5mm2 | Degree of protection | IP65 |
Note on degree of protection | In mounted state | Ambient temperature | -40°C 80°C |
Note on ambient temperature | Note derating | CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Housing material | PA6-reinforced |
Housing colour | Transparent | Material of pin contacts | Brass Nickel-plated Tin-plated |
Manufacturer ID | 164275 |
Specifications may be subject to change without notice
