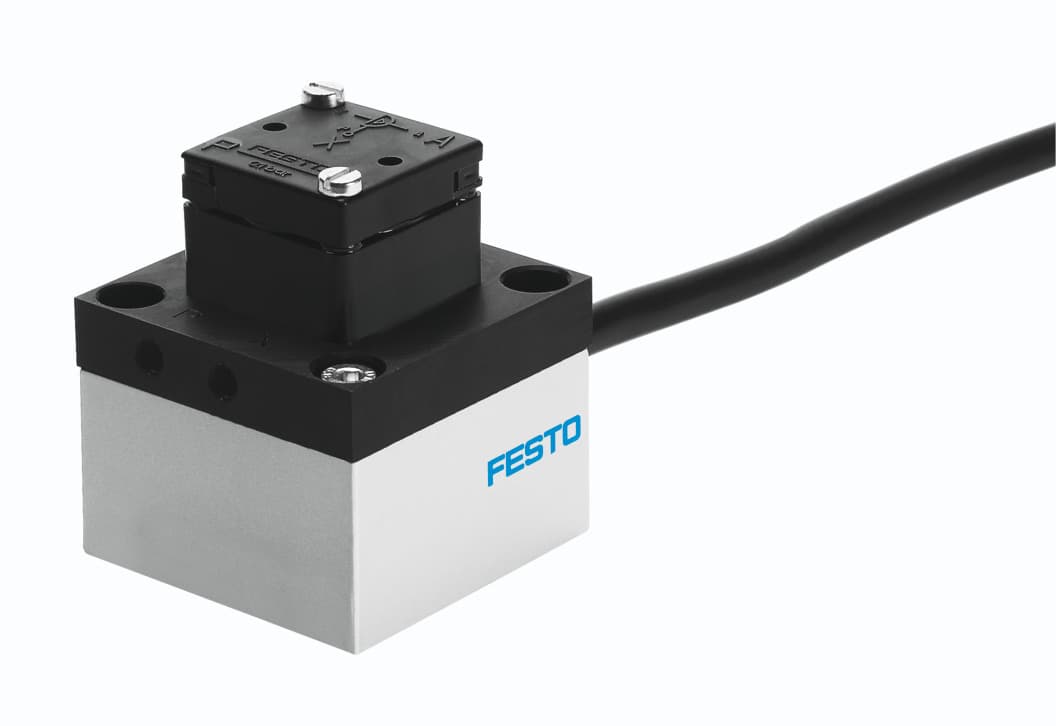

Product Model
pe-vk-5.1
Selling Points
- 1The PE-VK-5.1 measures relative pressure with high precision, ensuring reliable operation in various industrial settings.
- 2This converter operates seamlessly with compressed air and can be integrated into pneumatic/electrical systems for versatile use.
- 3Equipped with an IP62 protection class, the PE-VK-5.1 withstands harsh environments and maintains performance under challenging conditions.
- 4The lightweight design (250g) makes it easy to integrate into any system, saving space and enhancing overall efficiency.
- 5Compliant with EU directives and CE marked, this product also holds CCC authorization for global market compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 60947-5-1 | Symbol | 00991470 |
Certification | CCC | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Measured variable | Relative pressure |
Method of measurement | Pneumatic/electric pressure transducer | Operating pressure | 0bar 0.25bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication not possible |
Ambient temperature | -10°C 50°C | Switching output | Contact-based |
Switching function | Threshold value with fixed hysteresis | Switching element function | Changeover switch |
Switch-on point | 5.0E-4bar | Switch-off point | 1.0E-4bar |
Max. switching output voltage AC | 250V | Max. switching output voltage DC | 250V |
Utilization category for inductive load | AC-14 DC-13 | Utilization category for ohmic load | AC-12 DC-12 |
Electrical connection | 4-wire Cable | Electrical connection 1, connection type | Cable |
Electrical connection 1, connection technology | Open end | Cable length | 1m |
Material of cable sheath | PVC | Type of mounting | With through-hole |
Mounting position | Any | Pneumatic connection | M5 |
Product weight | 250g | Housing material | ABS Die-cast aluminum Aluminum, anodized |
Setting options | Permanently set | Degree of protection | IP62 |
Insulation voltage | 2000V | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Contamination level | 3 | Manufacturer ID | 7451 |
Specifications may be subject to change without notice
