Product Model

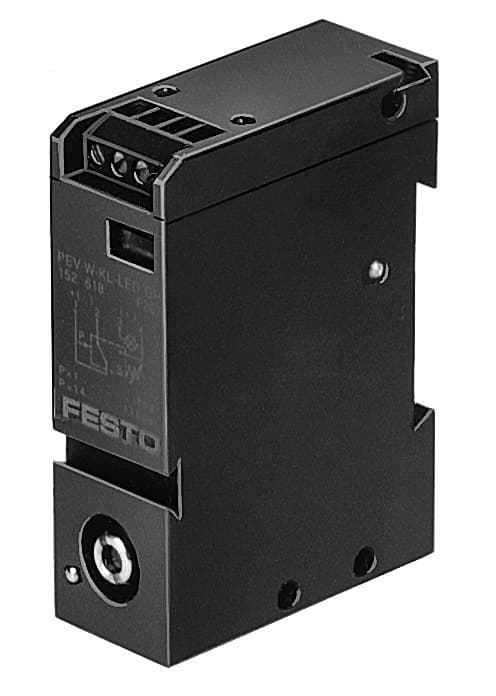

pev-w-kl-led-gh
Selling Points
- 1High Accuracy Pressure Measurement: The PEV-W-KL-LED-GH pressure switch offers precise relative pressure measurement, ensuring reliable operation in pneumatic systems. It measures pressures between 2 and 8 bar with a threshold setting range of 1.5 to 8 bar.
- 2LED Indication for Easy Monitoring: Equipped with a yellow LED indicator, this pressure switch provides clear visual feedback on its switching status, making it easy to monitor and diagnose issues in real-time.
- 3Wide Operating Temperature Range: The PEV-W-KL-LED-GH operates within a broad temperature range of 0 to 60 °C for both medium and ambient temperatures, ensuring it can handle various environmental conditions.
- 4Robust Construction for Durability: Built with high-quality materials like PA, PET, and POM, this pressure switch is designed to withstand moderate corrosion stress and offers a durable construction that lasts long.
- 5Flexible Installation Options: The PEV-W-KL-LED-GH can be mounted using through-hole or top-hat rail options, providing flexibility in installation and integration into different pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00991472 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Measured variable | Relative pressure |
Method of measurement | Pneumatic/electric pressure transducer | Pressure measuring range | 2bar 8bar |
Operating pressure | 0bar 8bar | Max. overload pressure | 20bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
Switching element function | Changeover switch | Hysteresis | 0.5bar 2bar |
Max. switching frequency | 3Hz | Max. output current | 2500mA |
DC operating voltage range | 10V 30V | Electrical connection | 4-pin Screw terminal |
Type of mounting | Optionally: With through-hole With H-rail | Mounting position | Any |
Pneumatic connection | M5 | Product weight | 56g |
Housing material | PA PET POM | Diaphragm material | NBR |
Switching status indication | LED yellow | Setting range threshold value | 2bar 8bar |
Degree of protection | IP20 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Manufacturer ID | 152618 |
Specifications may be subject to change without notice
