Product Model
pu-13-sw
Selling Points

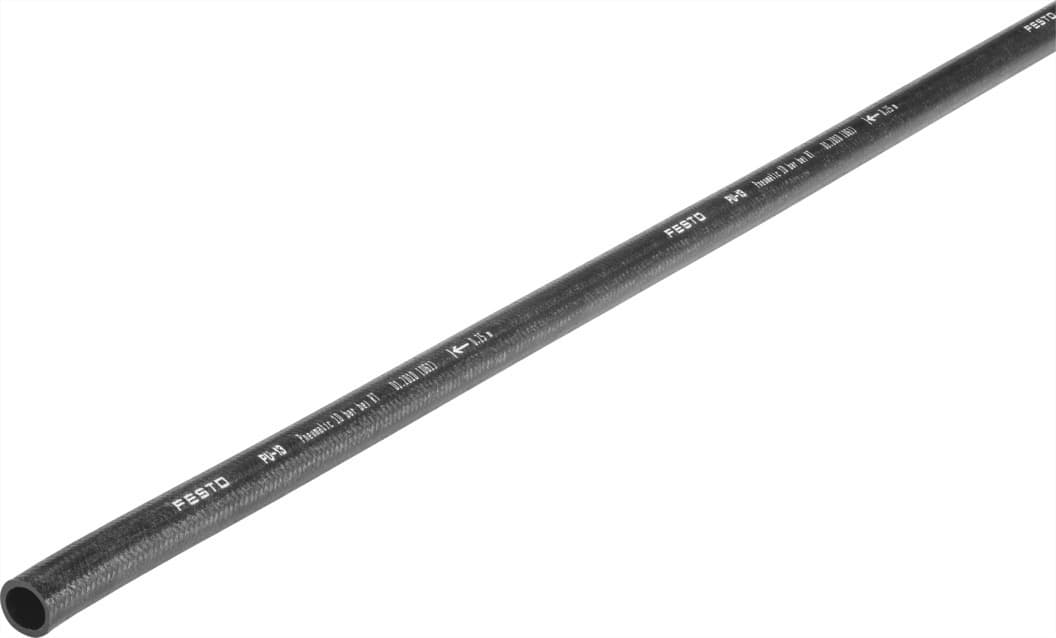

- 1The Festo PU-13-SW plastic tubing features an outside diameter of 17.6 mm and an inside diameter of 13 mm, ensuring precise fitment in pneumatic systems.
- 2With a flow-relevant bending radius of 83 mm, this tubing optimizes fluid flow, making it suitable for various industrial applications.
- 3The PU-13-SW operates within a temperature range of -35°C to 60°C and supports pressures up to 10 bar, providing versatility in different environments.
- 4Made from TPE-U (Thermoplastic Elastomer-Urethane), this tubing is RoHS-compliant and offers excellent durability and resistance to lubricated operation.
- 5The black-colored tubing is designed with a Shore hardness of A 86 +/-3, ensuring consistent performance and easy installation in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 17.6mm | Bending radius relevant for flow rate | 83mm |
Inside diameter | 13mm | Operating pressure for entire temperature range | -0.95bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.133kg/m | Pneumatic connection | For barbed fitting, inside diameter 13 mm, with union nut |
Color | Black | Shore hardness | A 86 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 12133 |
Specifications may be subject to change without notice
