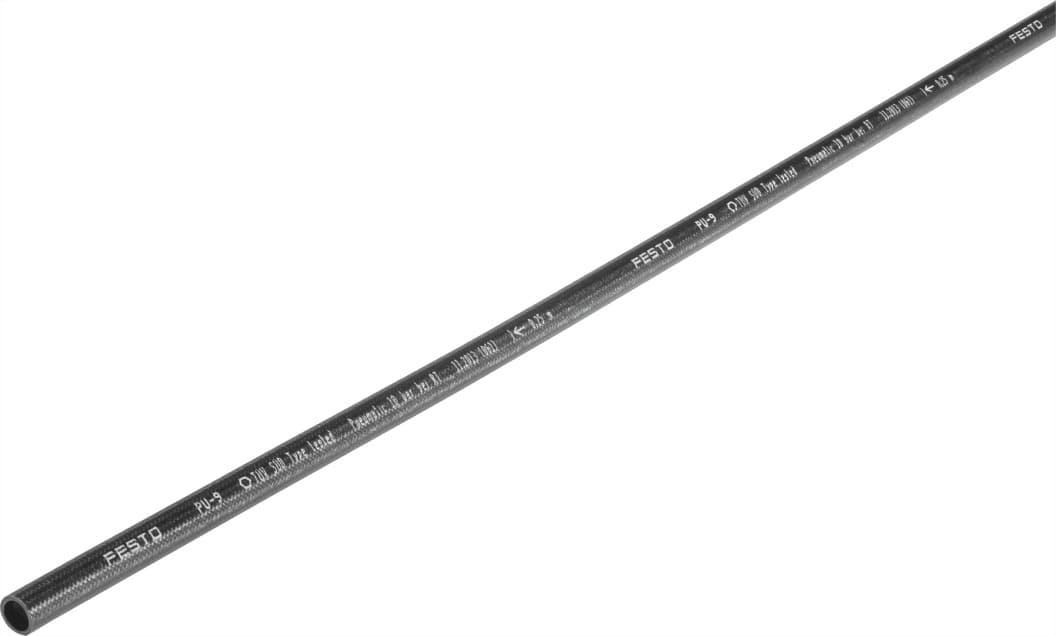

Product Model
pu-9-sw
Selling Points
- 1The Festo PU-9-SW pneumatic tubing is distinguished by its great resistance to abrasion and kinks, making it a reliable choice for various industrial applications.
- 2This tubing complies with ISO 8573-1:2010, ensuring it meets the highest standards for pneumatic systems.
- 3The PU-9-SW operates effectively within a temperature range of -35°C to 60°C and supports pressures up to 10 bar, making it versatile for different environments.
- 4The black TPE-U tubing features barbed connectors with nuts, allowing for easy installation and secure connections in pneumatic systems.
- 5The Festo PU-9-SW is RoHS compliant, ensuring it meets environmental regulations and is safe for use in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 11.6mm | Bending radius relevant for flow rate | 76mm |
Inside diameter | 9mm | Operating pressure for entire temperature range | 0bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.056kg/m | Pneumatic connection | For barbed fitting, inside diameter 9 mm, with union nut |
Color | Black | Shore hardness | A 91 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 12134 |
Specifications may be subject to change without notice
