Product Model
pun-10x1,5-bl
Selling Points

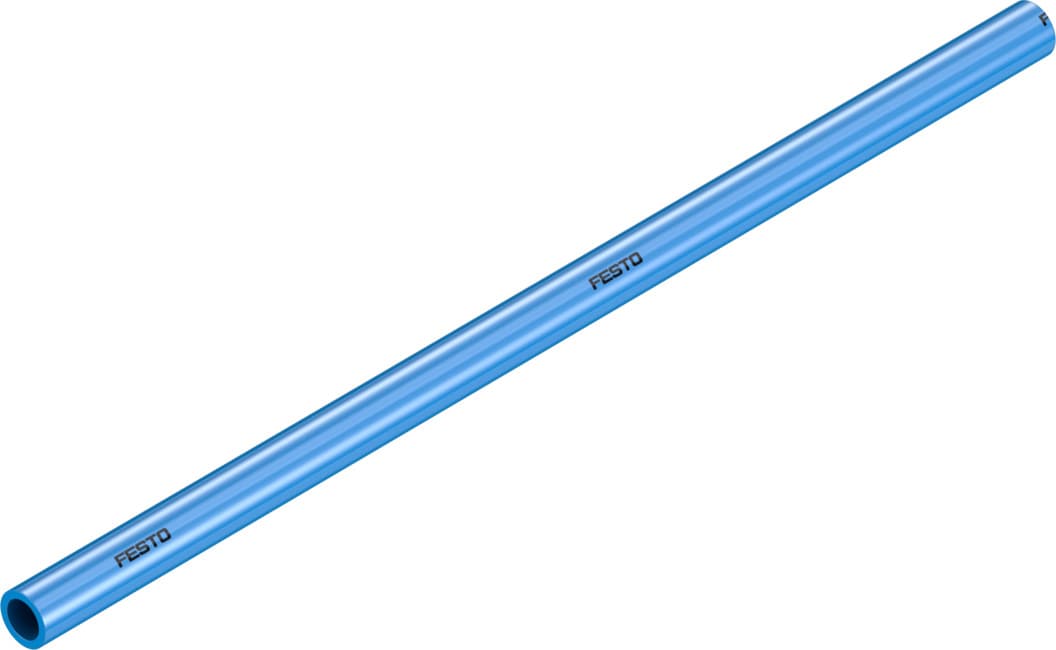

- 1The Festo PUN-10X1,5-BL pneumatic tubing is designed for high-cycle applications, ensuring reliable performance in demanding environments.
- 2Approved for use in food processing, this tubing is hydrolysis-resistant and meets stringent food safety standards.
- 3With an outside diameter of 10 mm and an inside diameter of 7 mm, this tubing offers optimal flow rates and flexibility.
- 4Suitable for energy chains, the PUN-10X1,5-BL can withstand over 5 million cycles, making it a durable choice for industrial use.
- 5Operating within a temperature range of -35°C to 60°C and with a pressure range of -0.95 to 10 bar, this tubing is versatile and adaptable.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 10mm | Bending radius relevant for flow rate | 54mm |
Inside diameter | 7mm | Min. bending radius | 28mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0489kg/m | Pneumatic connection | For plug connection outside diameter 10 mm |
Color | Blue | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 159668 |
Specifications may be subject to change without notice
