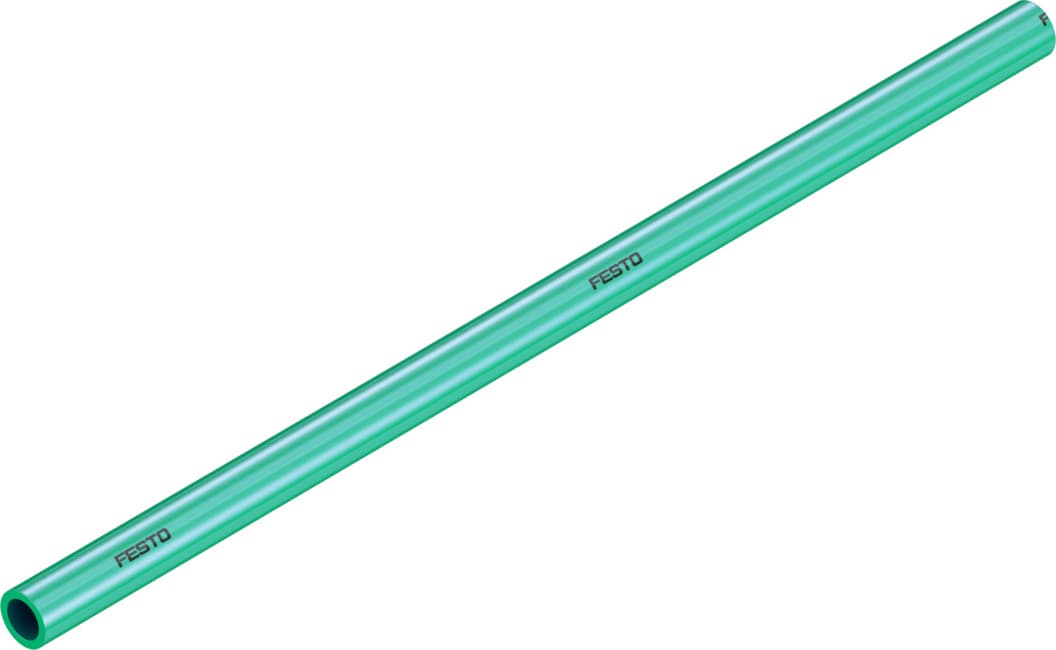

Festo PUN-10X1,5-GN Plastic Tubing - High-Quality Pneumatic Solution

Selling Points

1The Festo PUN-10X1,5-GN plastic tubing features an outside diameter of 10 mm and an inside diameter of 7 mm, making it ideal for various pneumatic applications.
2This tubing has a flow-relevant bending radius of 54 mm and a minimum bending radius of 28 mm, ensuring efficient fluid flow and durability.
3The PUN-10X1,5-GN is suitable for use in energy chains and can operate under pressures ranging from -0.095 MPa to 0.7 MPa (or -0.95 bar to 7 bar).
4The tubing is made from TPE-U (thermoplastic elastomer) and is RoHS-compliant, ensuring it meets environmental standards and is safe for use in various industries.
5The product is certified by the German Technical Control Board (TÜV) and meets fire test material UL94 HB LABS (PWIS) conformity, making it a reliable choice for critical applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Outside diameter	10mm	Bending radius relevant for flow rate	54mm
Inside diameter	7mm	Min. bending radius	28mm
Application note	TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.	Tubing characteristics	Suitable for energy chains
Operating pressure for entire temperature range	-13.775psi 101.5psi	Temperature-dependent operating pressure	-13.775psi 145psi
Certification	German Technical Control Board (TüV)	Certificate issuing authority	B 013277 0506 00
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Material fire test	UL94 HB
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-35°C 60°C
Product weight by length	0.0489kg/m	Pneumatic connection	For plug connection outside diameter 10 mm
Color	Green	Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	178427

Specifications may be subject to change without notice
