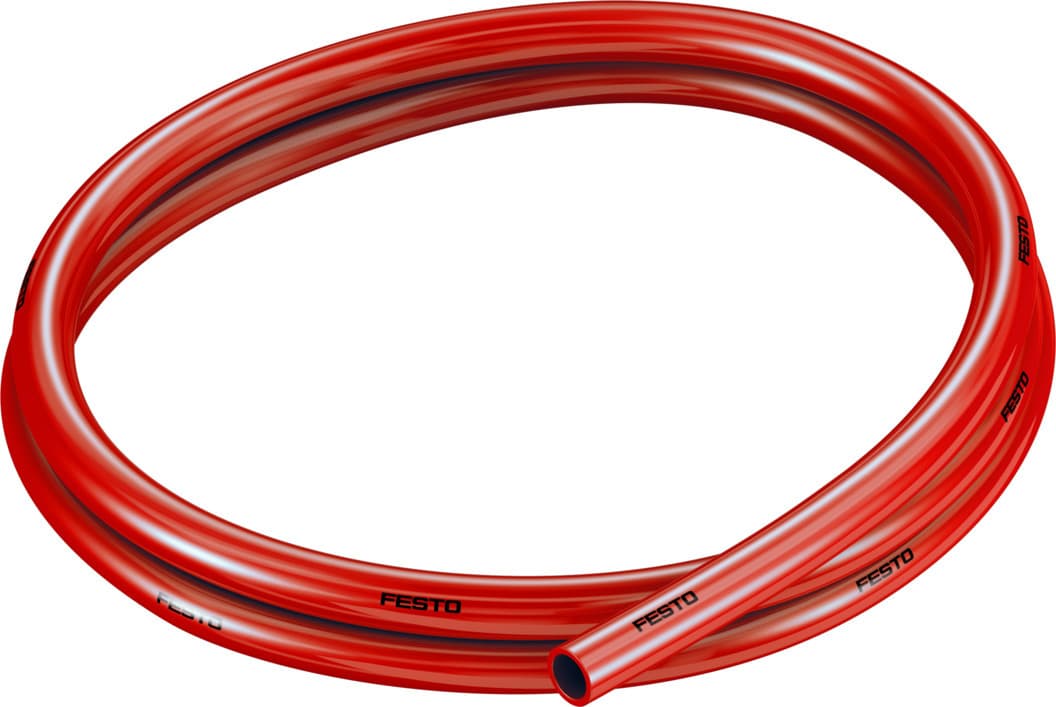

Festo PUN-10X1,5-RT Plastic Tubing - High-Quality Pneumatic Solution

Selling Points

1The Festo PUN-10X1,5-RT plastic tubing features a 10 mm outer diameter and a 7 mm inner diameter, making it versatile for various pneumatic applications.
2With a flow-relevant bending radius of 52 mm and a minimum bending radius of 28 mm, this tubing ensures efficient fluid flow and durability.
3Designed for use with energy chains, this tubing is perfect for applications requiring high flexibility and reliability.
4The PUN-10X1,5-RT is suitable for operating pressures up to 0.6 MPa (6 bar) and temperatures ranging from -35°C to 60°C, making it suitable for a wide range of environments.
5Made from TPE-U (thermoplastic elastomer) with a Shore hardness of D52 +/-3, this tubing is RoHS-compliant and ideal for applications where cleanliness and chemical resistance are crucial.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Outside diameter	10mm	Bending radius relevant for flow rate	54mm
Inside diameter	7mm	Min. bending radius	28mm
Application note	TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.	Tubing characteristics	Suitable for energy chains
Operating pressure for entire temperature range	-13.775psi 101.5psi	Temperature-dependent operating pressure	-13.775psi 145psi
Certification	German Technical Control Board (TüV)	Certificate issuing authority	B 013277 0506 00
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Material fire test	UL94 HB
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-35°C 60°C
Product weight by length	0.0489kg/m	Pneumatic connection	For plug connection outside diameter 10 mm
Color	Red	Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	178413

Specifications may be subject to change without notice
