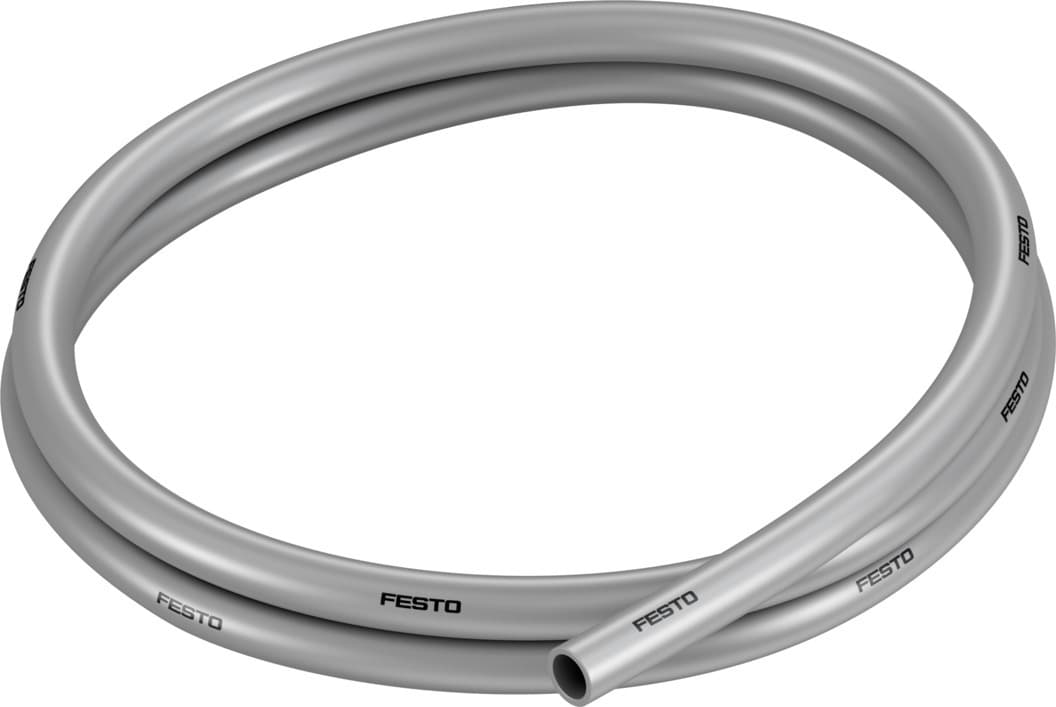

Festo PUN-10X1,5-SI Plastic Tubing - High Cycle Rate and Food-Safe

Selling Points

1The Festo PUN-10X1,5-SI plastic tubing features an outside diameter of 10 mm and an inside diameter of 7 mm, making it suitable for various pneumatic applications.
2With a bending radius relevant for flow rate of 54 mm and a minimum bending radius of 28 mm, this tubing ensures efficient fluid flow in high cycle rate applications.
3The PUN-10X1,5-SI is designed to operate within a temperature range of -35°C to 60°C and supports temperature-dependent operating pressures from -0.95 to 10 bar.
4This tubing is specifically approved for use in food processing due to its hydrolysis resistance and meets TÜV authorization standards.
5The Festo PUN-10X1,5-SI is made from TPE-U (PU) material, free of copper and PTFE, and conforms to RoHS regulations, ensuring it is environmentally friendly.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Outside diameter	10mm	Bending radius relevant for flow rate	54mm
Inside diameter	7mm	Min. bending radius	28mm
Application note	TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.	Tubing characteristics	Suitable for energy chains
Operating pressure for entire temperature range	-13.775psi 101.5psi	Temperature-dependent operating pressure	-13.775psi 145psi
Certification	German Technical Control Board (TüV)	Certificate issuing authority	B 013277 0506 00
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Material fire test	UL94 HB
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-35°C 60°C
Product weight by length	0.0489kg/m	Pneumatic connection	For plug connection outside diameter 10 mm
Color	Silver	Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	152588

Specifications may be subject to change without notice
