Product Model
pun-12x2-ge
Selling Points

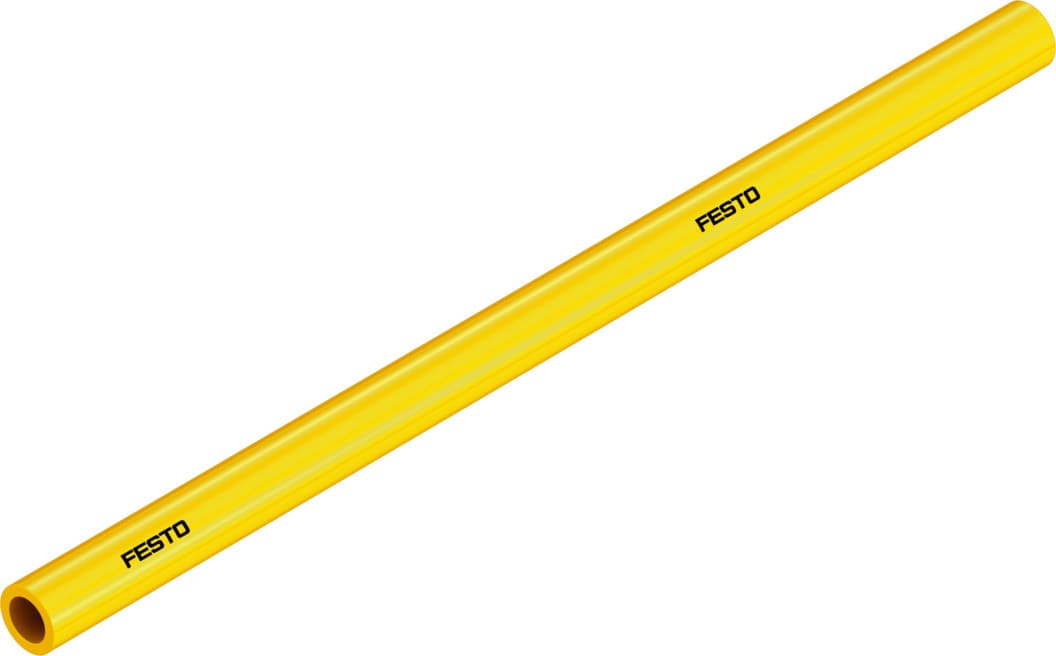

- 1The Festo PUN-H-12X2-GE tubing is designed to withstand hydrolysis, ensuring durability in various environments.
- 2With an outer diameter of 12mm, this tubing is suitable for a wide range of pneumatic applications.
- 3The yellow color makes it easily identifiable and visually appealing for use in various industrial settings.
- 4Available in a 50m coil length, this tubing offers convenience and efficiency for large-scale projects.
- 5Operating pressure ranges from -0.95 to 10 bar, making it versatile for different temperature conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 12mm | Bending radius relevant for flow rate | 62mm |
Inside diameter | 8mm | Min. bending radius | 33mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0767kg/m | Pneumatic connection | For plug connection outside diameter 12 mm |
Color | Yellow | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 178421 |
Specifications may be subject to change without notice
