Product Model
pun-12x2-rt
Selling Points

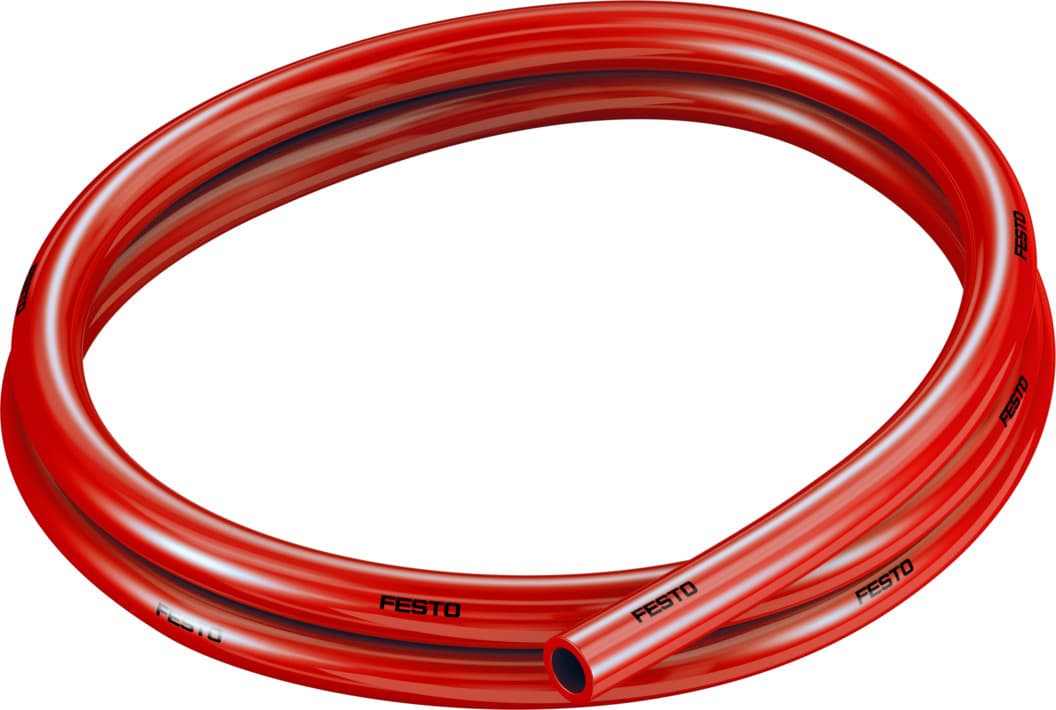

- 1The Festo PUN-12X2-RT plastic tubing features an outside diameter of 12 mm, making it versatile for various pneumatic applications.
- 2With a flow-relevant bending radius of 62 mm and a minimum bending radius of 33 mm, this tubing ensures efficient fluid flow and durability.
- 3Designed for high-cycle applications, the PUN-12X2-RT can withstand over 5 million cycles as per FN 942021, making it suitable for energy chains.
- 4The tubing is made from TPE-U (PU) material, which is RoHS-compliant and UL94 HB certified, ensuring safety and environmental sustainability.
- 5Operating within a temperature range of -35°C to 60°C and supporting pressures up to 10 bar, this tubing is ideal for a wide range of industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 12mm | Bending radius relevant for flow rate | 62mm |
Inside diameter | 8mm | Min. bending radius | 33mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0767kg/m | Pneumatic connection | For plug connection outside diameter 12 mm |
Color | Red | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 178414 |
Specifications may be subject to change without notice
