Product Model
pun-12x2-si
Selling Points

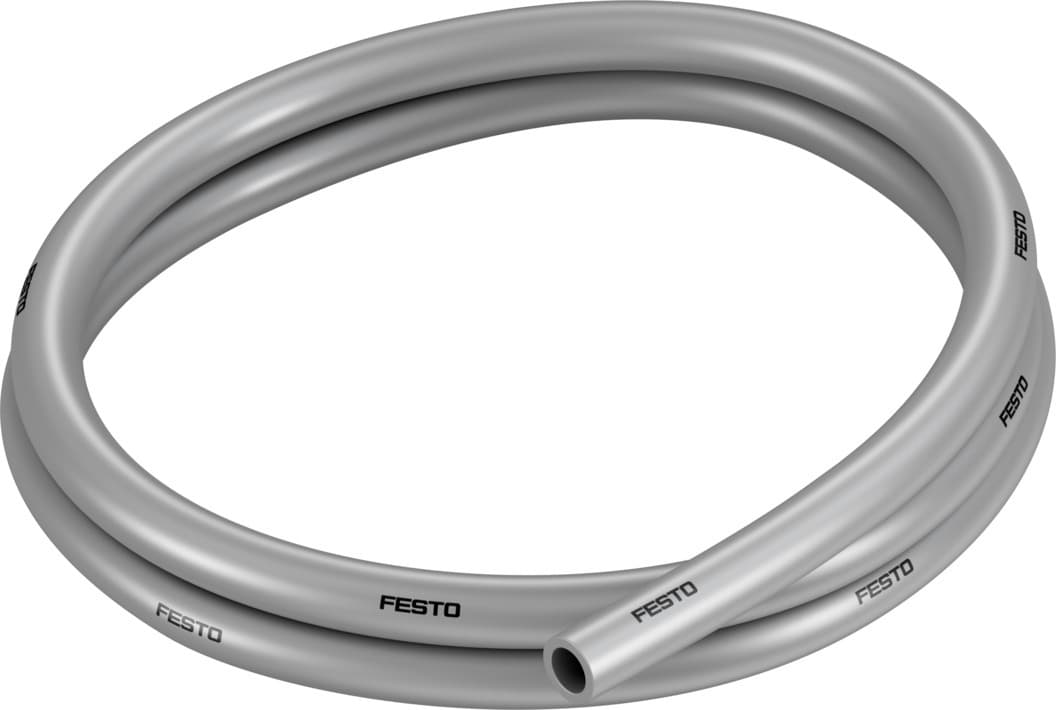

- 1The Festo PUN-12X2-SI plastic tubing features an outside diameter of 12 mm and an inside diameter of 8 mm, making it ideal for various pneumatic applications.
- 2With a flow-relevant bending radius of 62 mm and a minimum bending radius of 33 mm, this tubing ensures efficient and safe installation in your system.
- 3The PUN-12X2-SI is suitable for use with compressed air and operates within a temperature range of -35°C to 60°C, ensuring reliable performance in diverse environments.
- 4This TPE-U (PU) based tubing is RoHS-compliant and meets the standards of the German Technical Control Board (TÜV), ensuring compliance with safety regulations.
- 5The PUN-12X2-SI is designed for push-in connectors and is available in silver color with a Shore hardness of D 52 +/-3, providing a durable and long-lasting solution for your pneumatic needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 12mm | Bending radius relevant for flow rate | 62mm |
Inside diameter | 8mm | Min. bending radius | 33mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0767kg/m | Pneumatic connection | For plug connection outside diameter 12 mm |
Color | Silver | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 152589 |
Specifications may be subject to change without notice
