Product Model

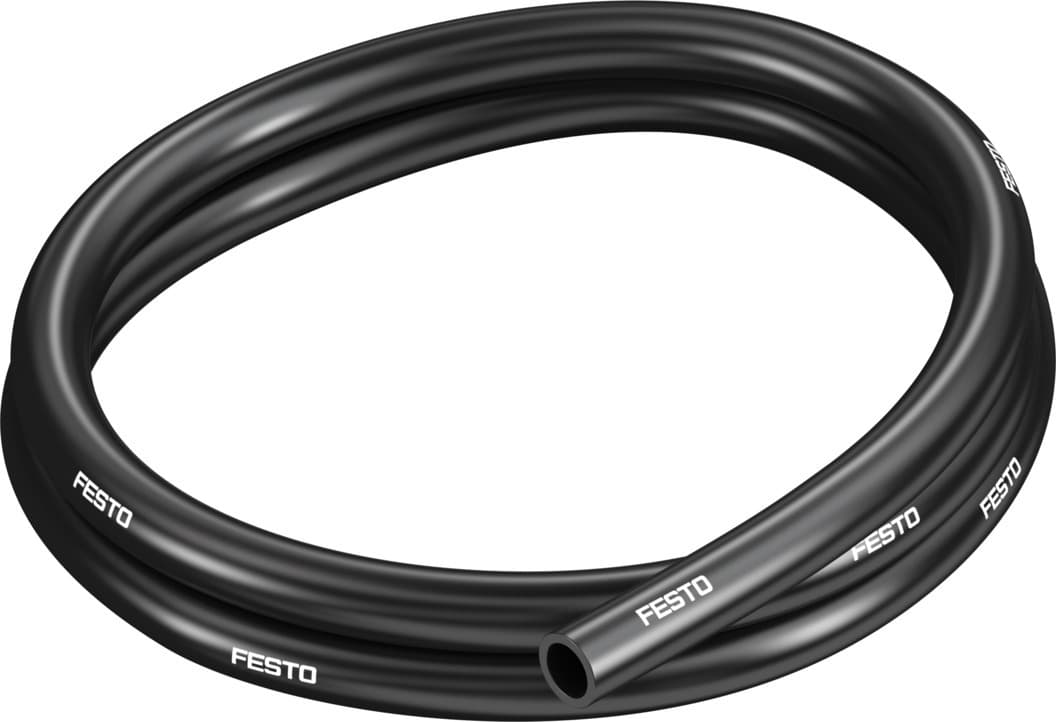

pun-14x2-sw
Selling Points
- 1High-Quality Material: Made from TPE-U ester-based material, ensuring durability and resistance.
- 2Food-Safe Option: Hydrolysis-resistant, approved for use in food processing environments.
- 3Versatile Applications: Suitable for energy chains in applications with high cycle rates.
- 4Temperature Range: Operates between -35°C to 60°C, with temperature-dependent operating pressure.
- 5Compliant Standards: Meets ISO 8573-1:2010 for compressed air and UL94 HB for fire resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 14mm | Bending radius relevant for flow rate | 84mm |
Inside diameter | 9.8mm | Min. bending radius | 45mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0949kg/m | Pneumatic connection | For plug connection outside diameter 14 mm |
Color | Black | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 570391 |
Specifications may be subject to change without notice
