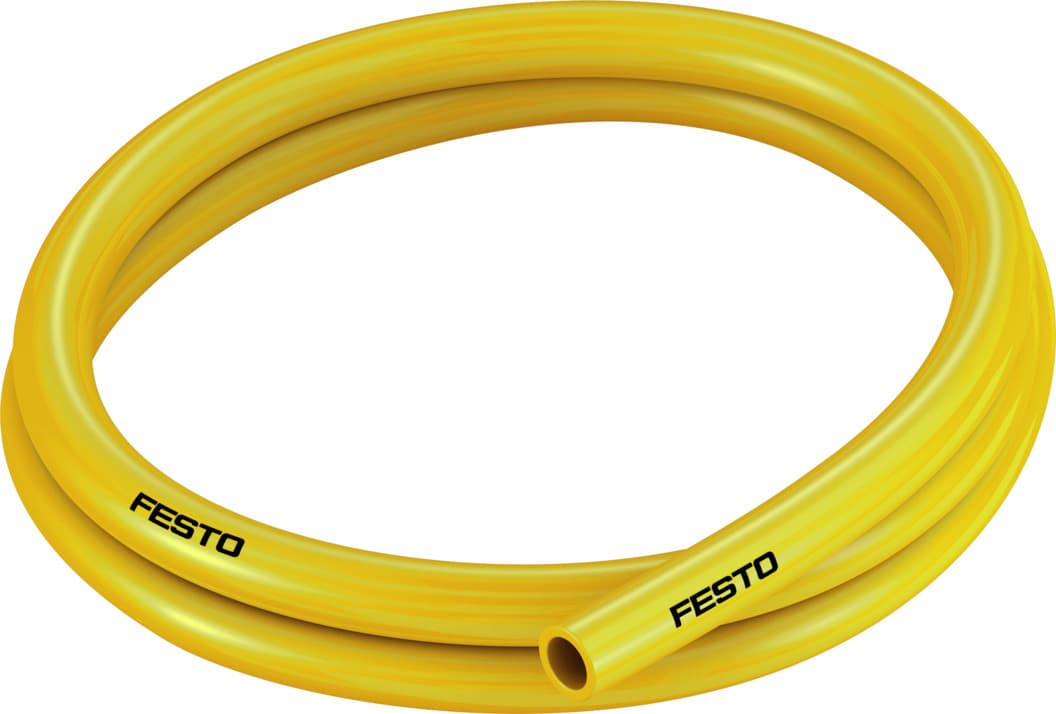

Festo PUN-16X2,5-GE Plastic Tubing - High-Quality, Food-Safe Solution

Selling Points

1The Festo PUN-16X2,5-GE plastic tubing features an outside diameter of 16 mm and an inside diameter of 11 mm, making it suitable for various pneumatic applications.
2This tubing is hydrolysis-resistant and approved for use in food processing, ensuring it meets stringent safety standards.
3With a bending radius relevant for flow rate of 88 mm and a minimum bending radius of 45 mm, it is ideal for energy chains in applications with high cycle rates.
4The PUN-16X2,5-GE tubing operates within a temperature-dependent pressure range of -0.95 to 10 bar, making it versatile for different environmental conditions.
5Certified by TÜV and compliant with ISO 8573-1:2010, this tubing ensures reliable performance and safety in compressed air applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Outside diameter	16mm	Bending radius relevant for flow rate	88mm
Inside diameter	11mm	Min. bending radius	45mm
Application note	TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.	Tubing characteristics	Suitable for energy chains
Operating pressure for entire temperature range	-13.775psi 101.5psi	Temperature-dependent operating pressure	-13.775psi 145psi
Certification	German Technical Control Board (TüV)	Certificate issuing authority	B 013277 0506 00
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Material fire test	UL94 HB
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-35°C 60°C
Product weight by length	0.1294kg/m	Pneumatic connection	For plug connection outside diameter 16 mm
Color	Yellow	Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	178422

Specifications may be subject to change without notice
