Product Model
pun-16x2,5-gn
Selling Points

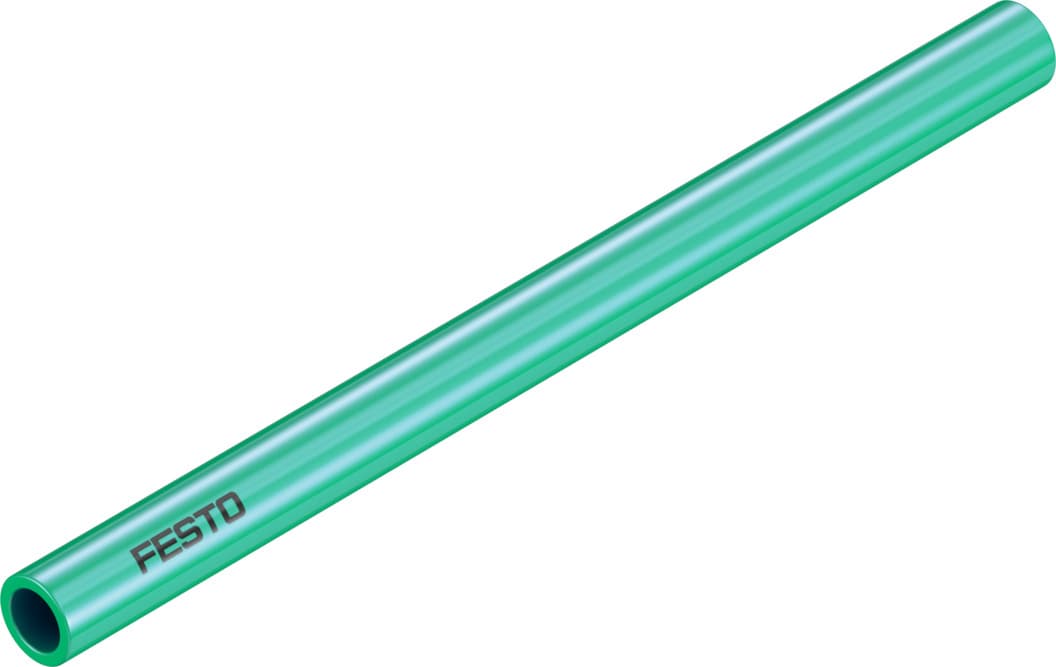

- 1The Festo PUN-16X2,5-GN plastic tubing features a 16mm outside diameter, making it suitable for various pneumatic applications.
- 2This tubing is certified by TUV, ensuring high-quality and safety standards in its design and manufacturing.
- 3The PUN-16X2,5-GN is made from durable TPE-U (Thermoplastic Elastomer-Urethane) material, providing excellent flexibility and resistance to wear.
- 4It is designed for use in energy chains with high cycle rates, ensuring reliable performance in demanding environments.
- 5The tubing operates within a temperature range of -35°C to 60°C and can handle operating pressures up to 10 bar, making it versatile for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 16mm | Bending radius relevant for flow rate | 88mm |
Inside diameter | 11mm | Min. bending radius | 45mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.1294kg/m | Pneumatic connection | For plug connection outside diameter 16 mm |
Color | Green | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 178429 |
Specifications may be subject to change without notice
