Product Model
pun-16x2,5-rt
Selling Points

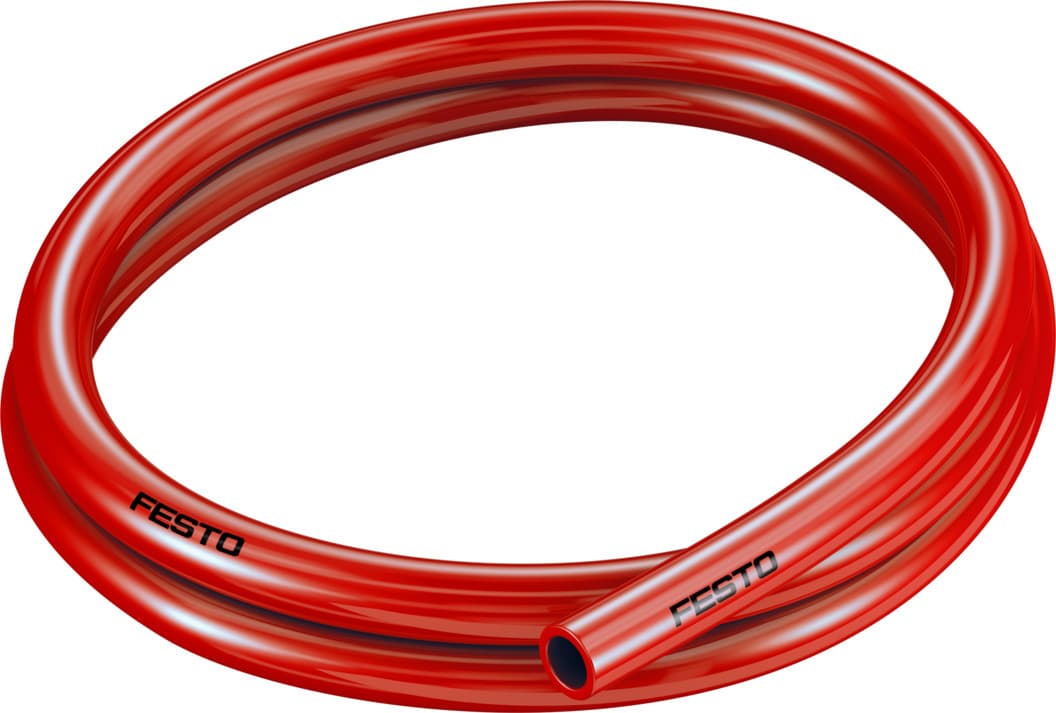

- 1The Festo PUN-H-16X2,5-RT plastic tubing is designed for high-cycle energy chain applications, ensuring durability and reliability in demanding environments.
- 2This tubing is hydrolysis-resistant, making it suitable for use in food processing and other applications where moisture is present.
- 3With an outside diameter of 16 mm and an inside diameter of 11 mm, the PUN-H-16X2,5-RT offers a precise fit for various pneumatic connections.
- 4The tubing's bending radius relevant for flow rate is 88 mm, ensuring optimal performance in various pneumatic systems.
- 5The product is TÜV authorized and operates within a temperature range of -35°C to 60°C, providing a wide operating window for diverse applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 16mm | Bending radius relevant for flow rate | 88mm |
Inside diameter | 11mm | Min. bending radius | 45mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.1294kg/m | Pneumatic connection | For plug connection outside diameter 16 mm |
Color | Red | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 178415 |
Specifications may be subject to change without notice
