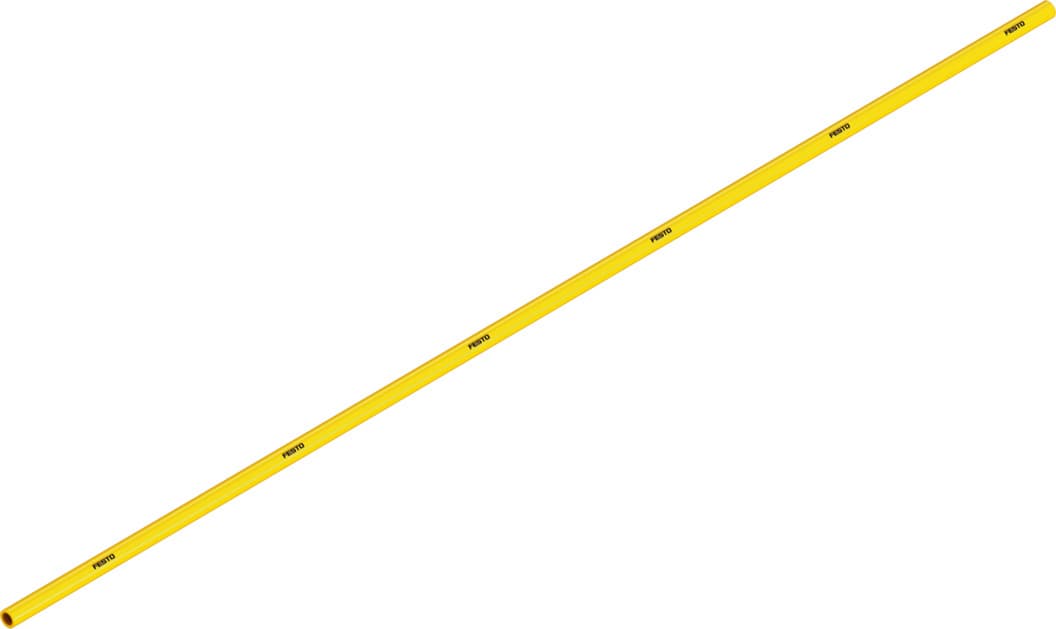

Festo PUN-3X0,5-GE Plastic Tubing - High-Quality Pneumatic Solution

Selling Points

1The Festo PUN-3X0,5-GE plastic tubing is designed for high-cycle applications, ensuring durability and reliability in pneumatic systems.
2With an outside diameter of 3 mm and an inside diameter of 2.1 mm, this tubing provides efficient flow rates and minimal resistance.
3The tubing is hydrolysis-resistant, making it suitable for use in food processing environments, ensuring safety and compliance.
4The PUN-3X0,5-GE tubing features a bending radius relevant for flow rate of 12 mm and a minimum bending radius of 6 mm, optimizing its performance in various applications.
5This Festo product is TÜV-approved and operates within a temperature range of -35°C to 60°C, providing a wide operating temperature window for diverse applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Outside diameter	3mm	Bending radius relevant for flow rate	12mm
Inside diameter	2.1mm	Min. bending radius	9mm
Application note	TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.	Tubing characteristics	Suitable for energy chains
Operating pressure for entire temperature range	-13.775psi 101.5psi	Temperature-dependent operating pressure	-13.775psi 145psi
Certification	German Technical Control Board (TüV)	Certificate issuing authority	B 013277 0506 00
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Material fire test	UL94 HB
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-35°C 60°C
Product weight by length	0.0044kg/m	Pneumatic connection	For plug connection outside diameter 3 mm For barbed fitting, inside diameter 2 mm
Color	Yellow	Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	178416

Specifications may be subject to change without notice
