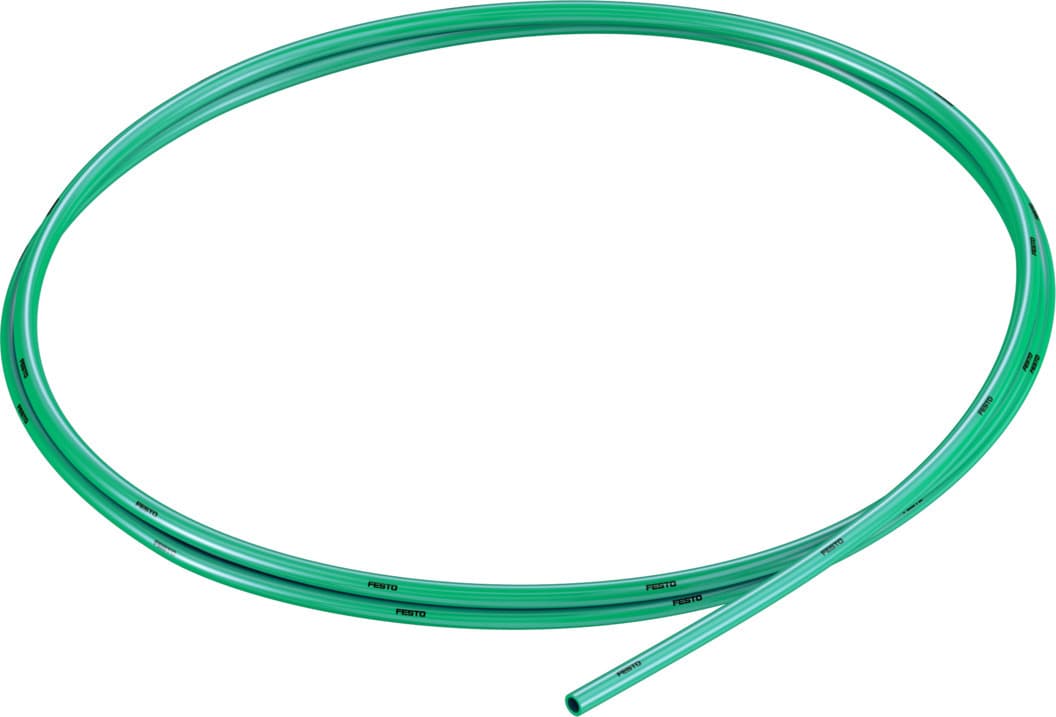

Festo PUN-3x0.5-GN Plastic Tubing - High-Quality Pneumatic Solution

Selling Points

1The PUN-3x0.5-GN plastic tubing is compatible with cable carriers for applications requiring high cycle rates, ensuring reliable performance in demanding environments.
2The tubing has an outside diameter of 3 mm, an inside diameter of 2.1 mm, and a flow-relevant bending radius of 12 mm, making it suitable for various pneumatic systems.
3Made from TPE-U (PU), this tubing is RoHS-compliant and has a Shore hardness of D 52 ±3, ensuring durability and resistance to chemicals.
4The PUN-3x0.5-GN can operate within a temperature range of -35°C to 60°C and supports compressed air to ISO 8573-1:2010, making it versatile for different applications.
5This product meets the standards of the German Technical Control Board (TÜV) and UL94 HB fire test material, ensuring safety and quality.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Outside diameter	3mm	Bending radius relevant for flow rate	12mm
Inside diameter	2.1mm	Min. bending radius	9mm
Application note	TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.	Tubing characteristics	Suitable for energy chains
Operating pressure for entire temperature range	-13.775psi 101.5psi	Temperature-dependent operating pressure	-13.775psi 145psi
Certification	German Technical Control Board (TüV)	Certificate issuing authority	B 013277 0506 00
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Material fire test	UL94 HB
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-35°C 60°C
Product weight by length	0.0044kg/m	Pneumatic connection	For plug connection outside diameter 3 mm For barbed fitting, inside diameter 2 mm
Color	Green	Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	178423

Specifications may be subject to change without notice
