Product Model
pun-4x0,75-duo-si
Selling Points

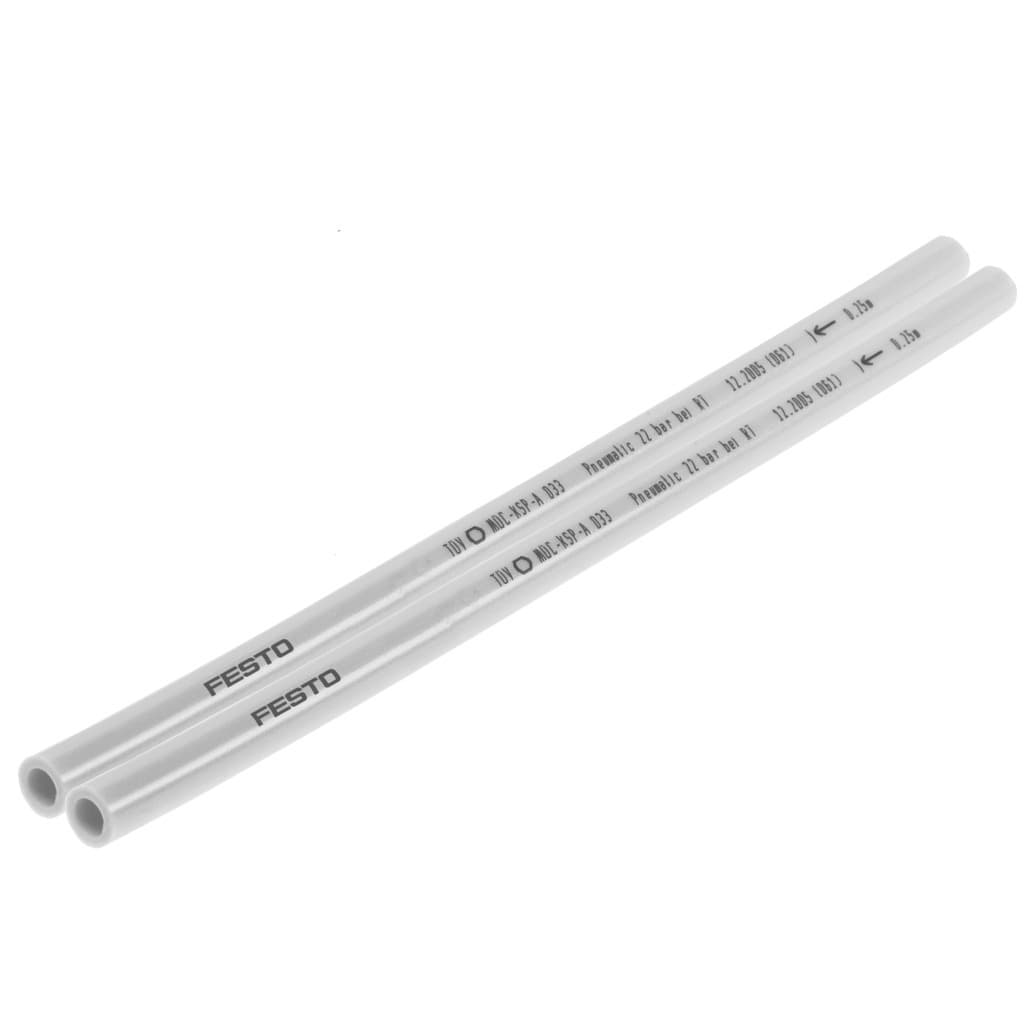

- 1The Festo PUN-4X0,75-DUO-SI pneumatic tubing boasts a 4mm outside diameter and 2.6mm inside diameter, ensuring precise fitment in various pneumatic systems.
- 2With a flow-relevant bending radius of 17mm and a minimum bending radius of 8mm, this tubing is designed to maintain optimal airflow and flexibility.
- 3The PUN-4X0,75-DUO-SI is made from TPE-U Ester-based material, which is resistant to abrasion, kinks, and hydrolysis, making it durable for long-term use.
- 4This tubing is suitable for compressed air applications and operates within a temperature range of -35°C to 60°C, ensuring reliable performance across various environments.
- 5The Festo PUN-4X0,75-DUO-SI meets stringent safety standards with TÜV approval and UL94 HB fire test material compliance, ensuring it is safe for use in critical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 4mm | Bending radius relevant for flow rate | 17mm |
Inside diameter | 2.6mm | Min. bending radius | 8mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0178kg/m | Pneumatic connection | For plug connection outside diameter 4 mm For barbed fitting, inside diameter 3 mm, with union nut For barbed fitting, inside diameter 3 mm |
Color | Silver | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 152822 |
Specifications may be subject to change without notice
