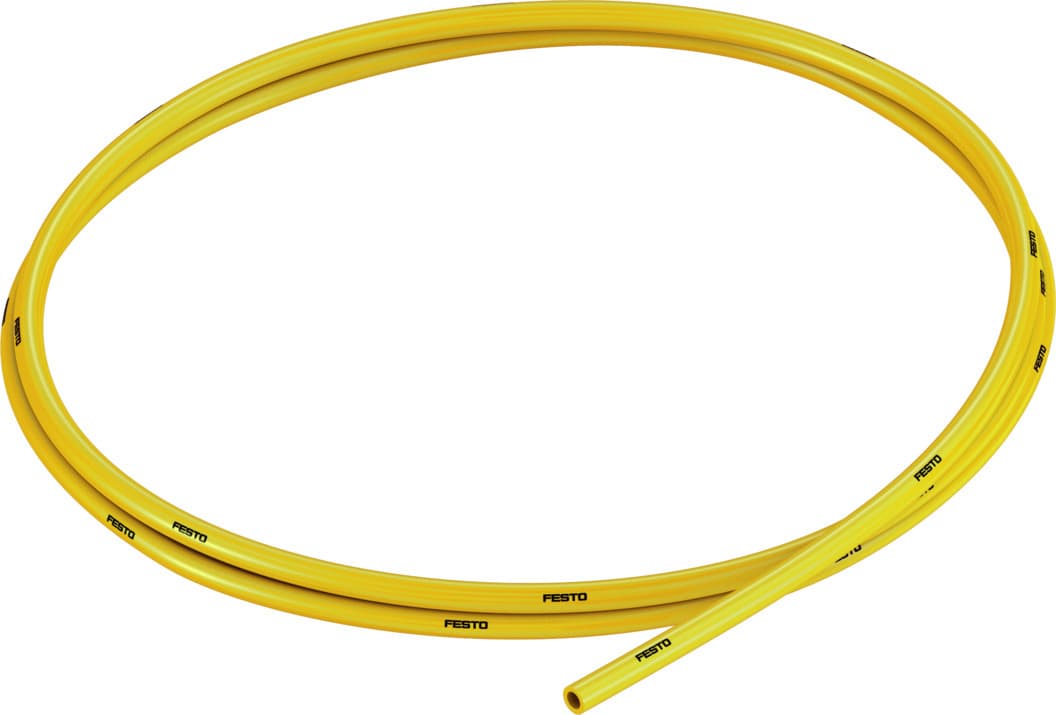

Festo PUN-4X0,75-GE Plastic Tubing - High-Quality Pneumatic Solution

Selling Points

1The Festo PUN-4X0,75-GE plastic tubing features an outside diameter of 4 mm and an inside diameter of 2.6 mm, making it perfect for pneumatic applications.
2With a minimum bending radius of 8 mm, this tubing ensures efficient flow rates in various industrial settings.
3The PUN-4X0,75-GE is suitable for use in energy chains, offering high durability and resistance to high cycle rates.
4This tubing is certified by the German Technical Control Board (TÜV) and meets the standards for operating pressures up to 0.7 MPa.
5The material is TPE-U (ether-based), ensuring it is RoHS-compliant and suitable for use in food processing environments, making it a versatile choice for various industrial applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Outside diameter	4mm	Bending radius relevant for flow rate	17mm
Inside diameter	2.6mm	Min. bending radius	8mm
Application note	TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.	Tubing characteristics	Suitable for energy chains
Operating pressure for entire temperature range	-13.775psi 101.5psi	Temperature-dependent operating pressure	-13.775psi 145psi
Certification	German Technical Control Board (TüV)	Certificate issuing authority	B 013277 0506 00
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Material fire test	UL94 HB
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-35°C 60°C
Product weight by length	0.0089kg/m	Pneumatic connection	For plug connection outside diameter 4 mm For barbed fitting, inside diameter 3 mm, with union nut For barbed fitting, inside diameter 3 mm
Color	Yellow	Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	178417

Specifications may be subject to change without notice
