Product Model
pun-4x0,75-gn
Selling Points

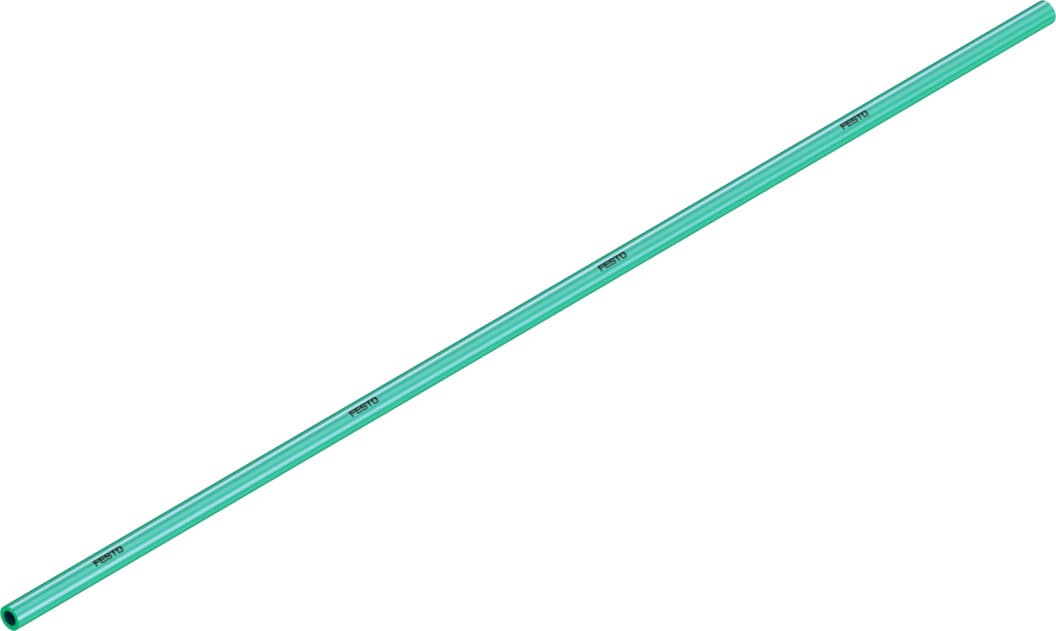

- 1The Festo PUN-4X0,75-GN plastic tubing features a 4 mm outside diameter and a 2.6 mm inside diameter, making it suitable for various pneumatic applications.
- 2This tubing has a flow-relevant bending radius of 17 mm and a minimum bending radius of 8 mm, ensuring efficient flow and durability.
- 3The PUN-4X0,75-GN is designed for use with compressed air, meeting ISO 8573-1:2010 standards, and is also suitable for energy chains in high-cycle applications.
- 4This product is TÜV-approved and comes in a green color with a Shore hardness of D52 ±3, ensuring it meets stringent quality standards.
- 5The tubing is made from TPE-U (PU) material, which is RoHS-compliant and suitable for operating temperatures ranging from -35°C to 60°C, making it versatile for various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 4mm | Bending radius relevant for flow rate | 17mm |
Inside diameter | 2.6mm | Min. bending radius | 8mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0089kg/m | Pneumatic connection | For plug connection outside diameter 4 mm For barbed fitting, inside diameter 3 mm, with union nut For barbed fitting, inside diameter 3 mm |
Color | Green | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 178424 |
Specifications may be subject to change without notice
