Product Model
pun-4x0,75-rt
Selling Points

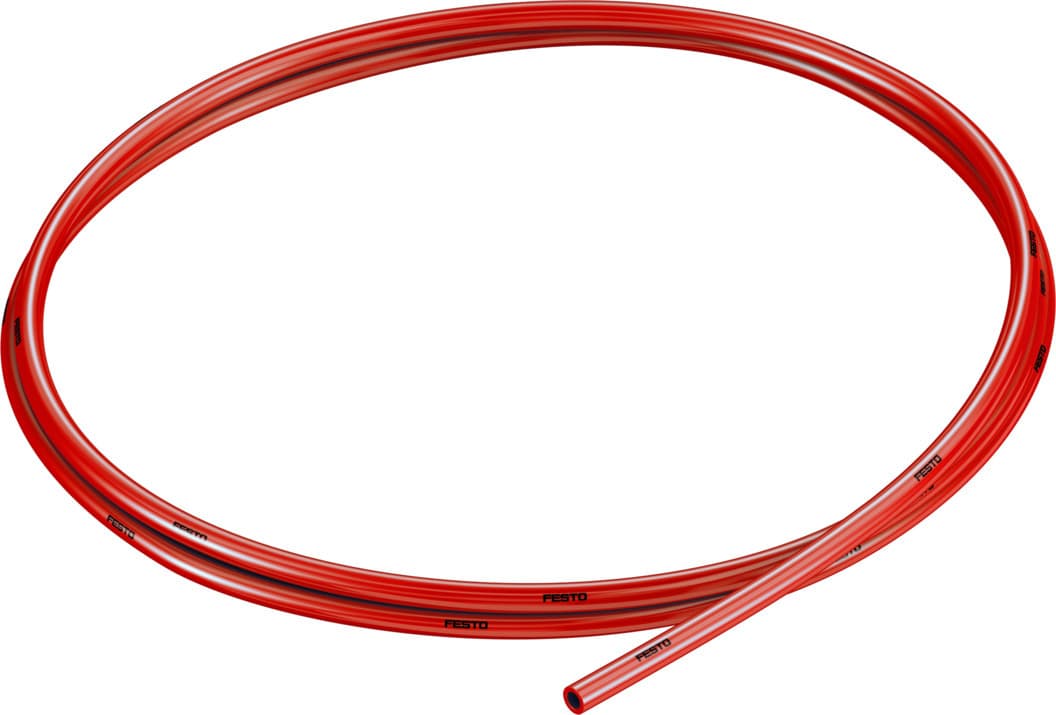

- 1The Festo PUN-4X0,75-RT plastic tubing features an outside diameter of 4 mm and an inside diameter of 2.6 mm, making it ideal for pneumatic connections and energy chain applications.
- 2This tubing is made from TPE-U (PU) material, ensuring it is RoHS-compliant and suitable for use in various environments, including cleanrooms and food handling.
- 3With a bending radius relevant for flow rate of 17 mm and a minimum bending radius of 8 mm, the PUN-4X0,75-RT is designed to maintain optimal performance in various installation scenarios.
- 4The tubing operates within a pressure range of -0.095 MPa to 0.7 MPa (or -0.95 bar to 7 bar) and up to 1 MPa (or 10 bar) at specific temperatures, making it versatile for different applications.
- 5Available in a 50-meter length and featuring a red color with a Shore hardness of D 52 +/-3, the PUN-4X0,75-RT is easy to integrate into your pneumatic systems and ensures consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 4mm | Bending radius relevant for flow rate | 17mm |
Inside diameter | 2.6mm | Min. bending radius | 8mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0089kg/m | Pneumatic connection | For plug connection outside diameter 4 mm For barbed fitting, inside diameter 3 mm, with union nut For barbed fitting, inside diameter 3 mm |
Color | Red | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 178410 |
Specifications may be subject to change without notice
