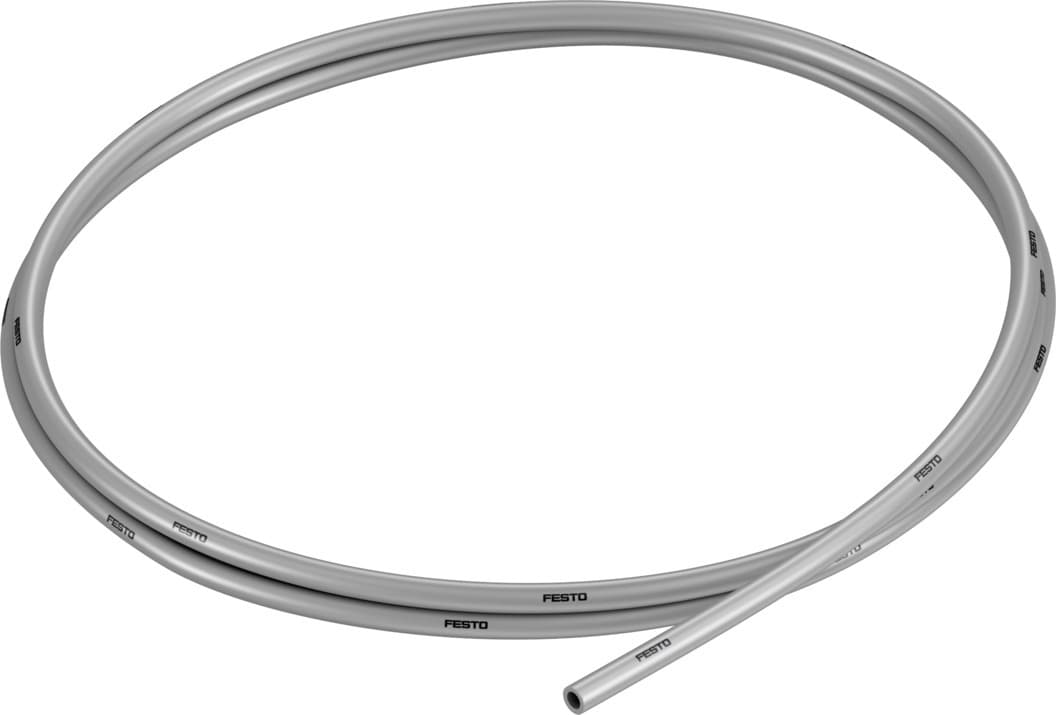

Festo PUN-4X0,75-SI Plastic Tubing - High-Quality Pneumatic Solutions

Selling Points

1The PUN-4X0,75-SI plastic tubing is engineered to withstand over 5 million cycles, making it suitable for applications with high cycle rates.
2With an outside diameter of 4mm and an inside diameter of 2.6mm, this tubing is perfect for compact pneumatic systems and energy chains.
3The tubing has a bending radius relevant for flow rate of 17mm and a minimum bending radius of 8mm, ensuring smooth operation in various configurations.
4The PUN-4X0,75-SI operates within a temperature range of -35°C to 60°C, providing reliable performance in diverse environmental conditions.
5This product is certified by the German Technical Control Board (TÜV) and meets ROHS compliance, ensuring it is free of copper and PTFE.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Outside diameter	4mm	Bending radius relevant for flow rate	17mm
Inside diameter	2.6mm	Min. bending radius	8mm
Application note	TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.	Tubing characteristics	Suitable for energy chains
Operating pressure for entire temperature range	-13.775psi 101.5psi	Temperature-dependent operating pressure	-13.775psi 145psi
Certification	German Technical Control Board (TüV)	Certificate issuing authority	B 013277 0506 00
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Material fire test	UL94 HB
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-35°C 60°C
Product weight by length	0.0089kg/m	Pneumatic connection	For plug connection outside diameter 4 mm For barbed fitting, inside diameter 3 mm, with union nut For barbed fitting, inside diameter 3 mm
Color	Silver	Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	152584

Specifications may be subject to change without notice
