Product Model
pun-6x1-rt
Selling Points

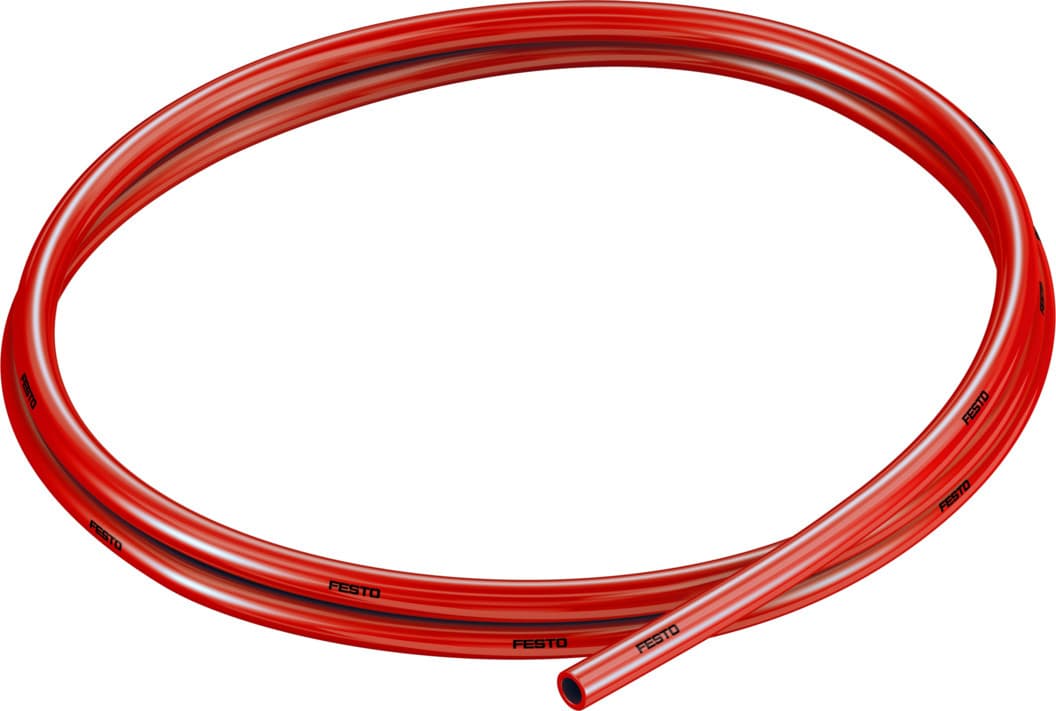

- 1The Festo PUN-6X1-RT plastic tubing features an outside diameter of 6 mm and an inside diameter of 4 mm, making it ideal for pneumatic applications.
- 2With a bending radius relevant for flow rate of 26.5 mm and a minimum bending radius of 16 mm, this tubing ensures efficient fluid flow and flexibility.
- 3The PUN-6X1-RT is designed to operate within a wide temperature range from -35°C to 60°C and supports operating pressures from -0.095 MPa to 0.7 MPa.
- 4This tubing is suitable for use in energy chains and is certified by the German Technical Control Board (TÜV) with certificate issuing authority B 013277 0506 00.
- 5The Festo PUN-6X1-RT is made from TPE-U (PU) material, which is RoHS-compliant and meets fire test material UL94 HB LABS (PWIS) conformity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 6mm | Bending radius relevant for flow rate | 26.5mm |
Inside diameter | 4mm | Min. bending radius | 16mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0192kg/m | Pneumatic connection | For plug connection outside diameter 6 mm For barbed fitting, inside diameter 4 mm, with union nut For barbed fitting, inside diameter 4 mm |
Color | Red | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 178411 |
Specifications may be subject to change without notice
